Sugatsune HG-VH8-T35/BL: Free Stop Combination Hinge - Black
Sugatsune HG-VH8-T35/BL: Free Stop Combination Hinge - Black

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Sugatsune HG-VH8-T35/BL: Free Stop Combination Hinge - Black

Sugatsune
|
SKU: suga-HG-VH8-T35/BL
Out of stock
(0)
$16.75
-15% $19.70 $16.75
Click here to view the Sugatsune catalog page for more information about this item
Usually Ships In 1 to 3 Business Days

Have Questions? Ask an Expert!

888-566-2748 Email Us

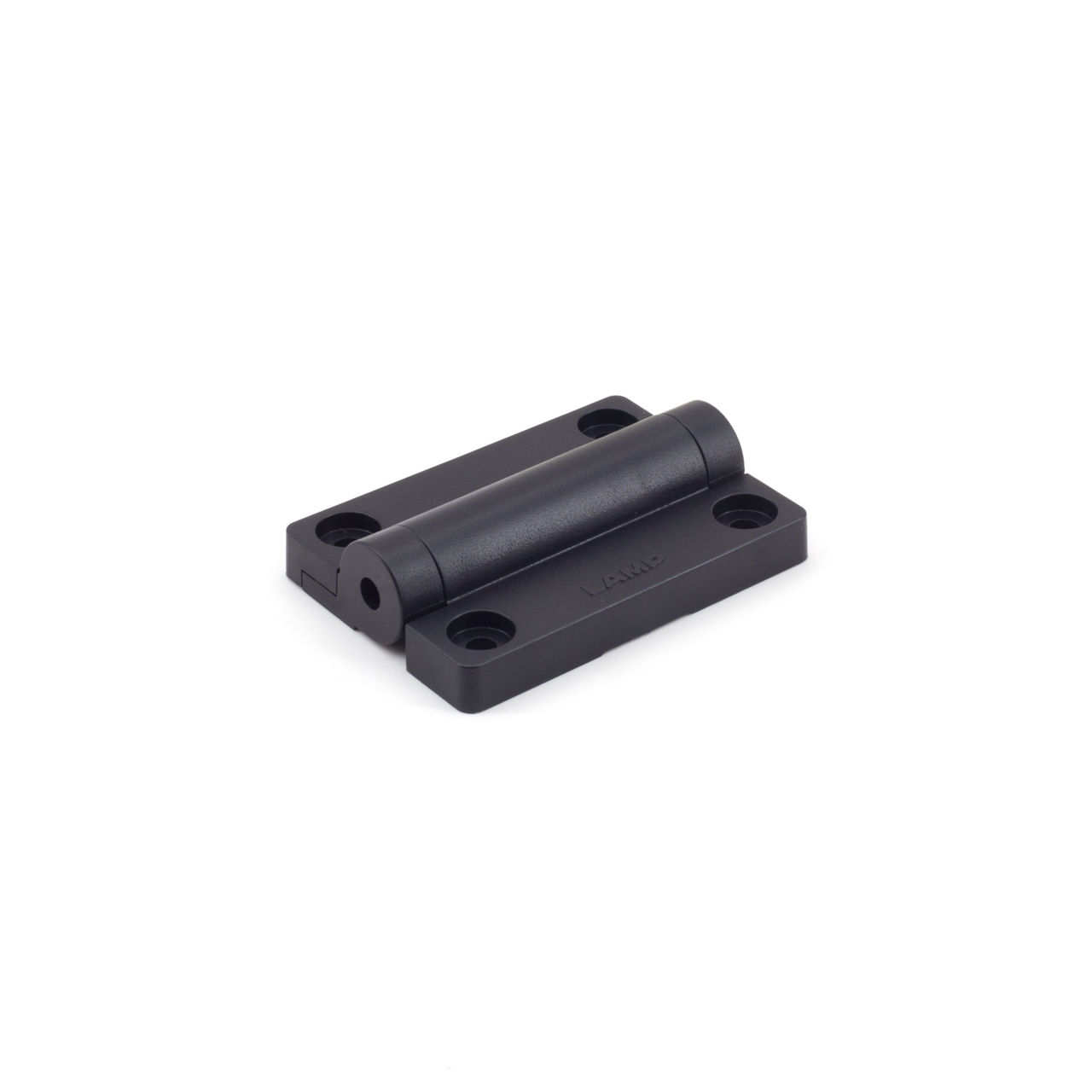

Sugatsune HG-VH8-T35/BL: Free Stop Combination Hinge in Black finish.
  • Free stop movement, holds where set
  • Lightweight hinge for lids and doors
  • 270 degrees opening angle
  • Torque rating: 3.10 lbs./inch per hinge
  • Torque calculation: Toque = Door height x .5 x door weight
  • Maximum weight for lateral opening door: 1.78 lbs.
  • Sold individually
  • Mounting hardware not included
Click here to view the Sugatsune catalog page for more information about this item

Specifications

Height: 0.49″
Width: 1.42″
Depth: 1.97″
