Sugatsune HGS3D-S160SH: 160mm 3-Way Adjustable Concealed Hinge - Satin Stainless Steel

Sugatsune
|
SKU: suga-HGS3D-S160SH
In stock
(0)
$203.19
-15% $239.05 $203.19

Have Questions? Ask an Expert!

888-566-2748 Email Us

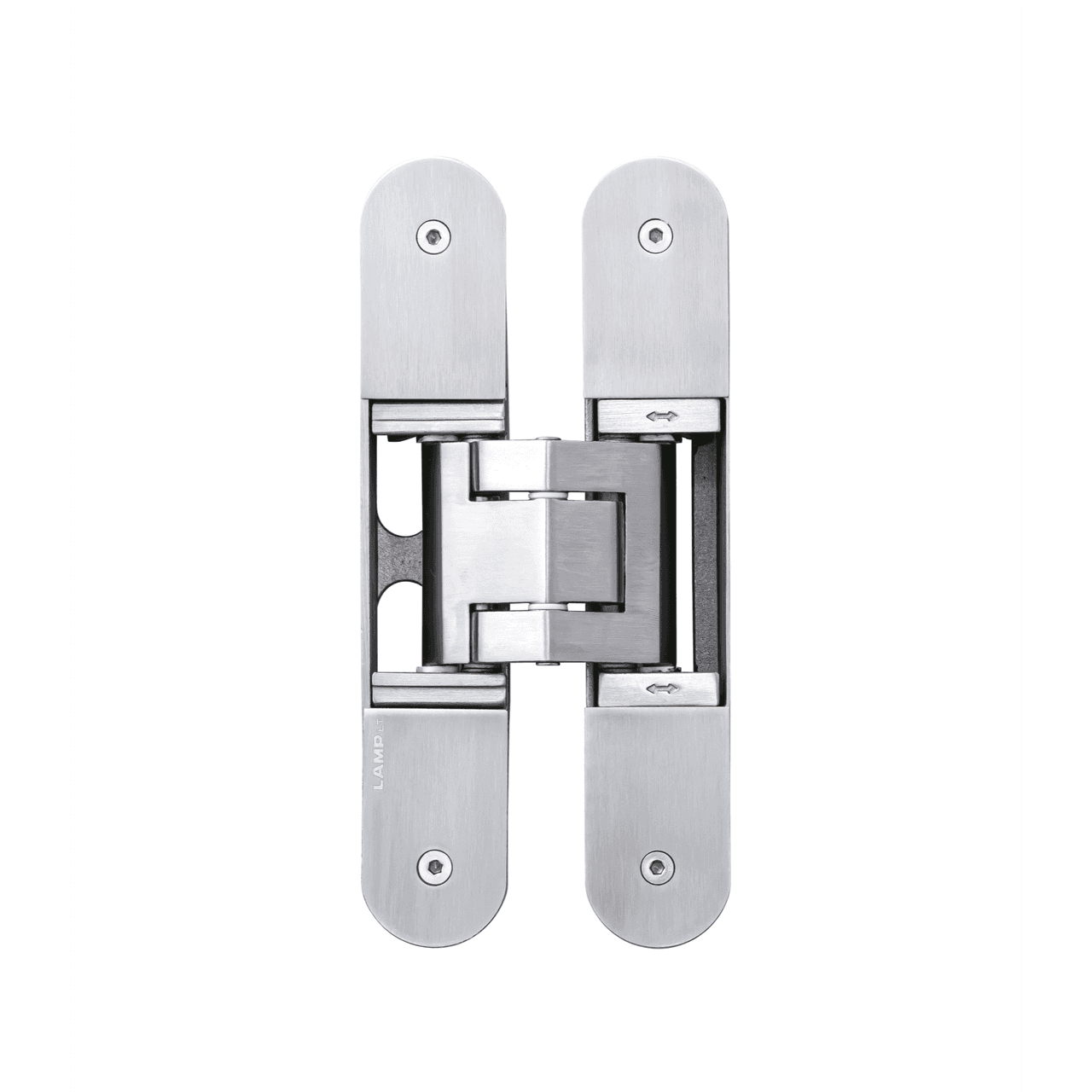

Sugatsune HGS3D-S160SH: 160mm 3-Way Adjustable Concealed Hinge in Satin Stainless Steel finish.

  • 3-way adjustable allowing for vertical, horizontal and depth adjustments
  • Hinge leaves are designed to separate and features w a temporary hold function making it easier to hang doors
  • Load capacity (2 hinges): 176 lbs.
  • Load capacity (3 hinges): 220 lbs.
  • Maximum width: 36"
  • Maximum height: 96"
  • Minimum thickness: 1-7/16"
  • Opening angle: 180 degrees
  • 304 grade stainless steel
  • Includes round screw covers for a clean finish.

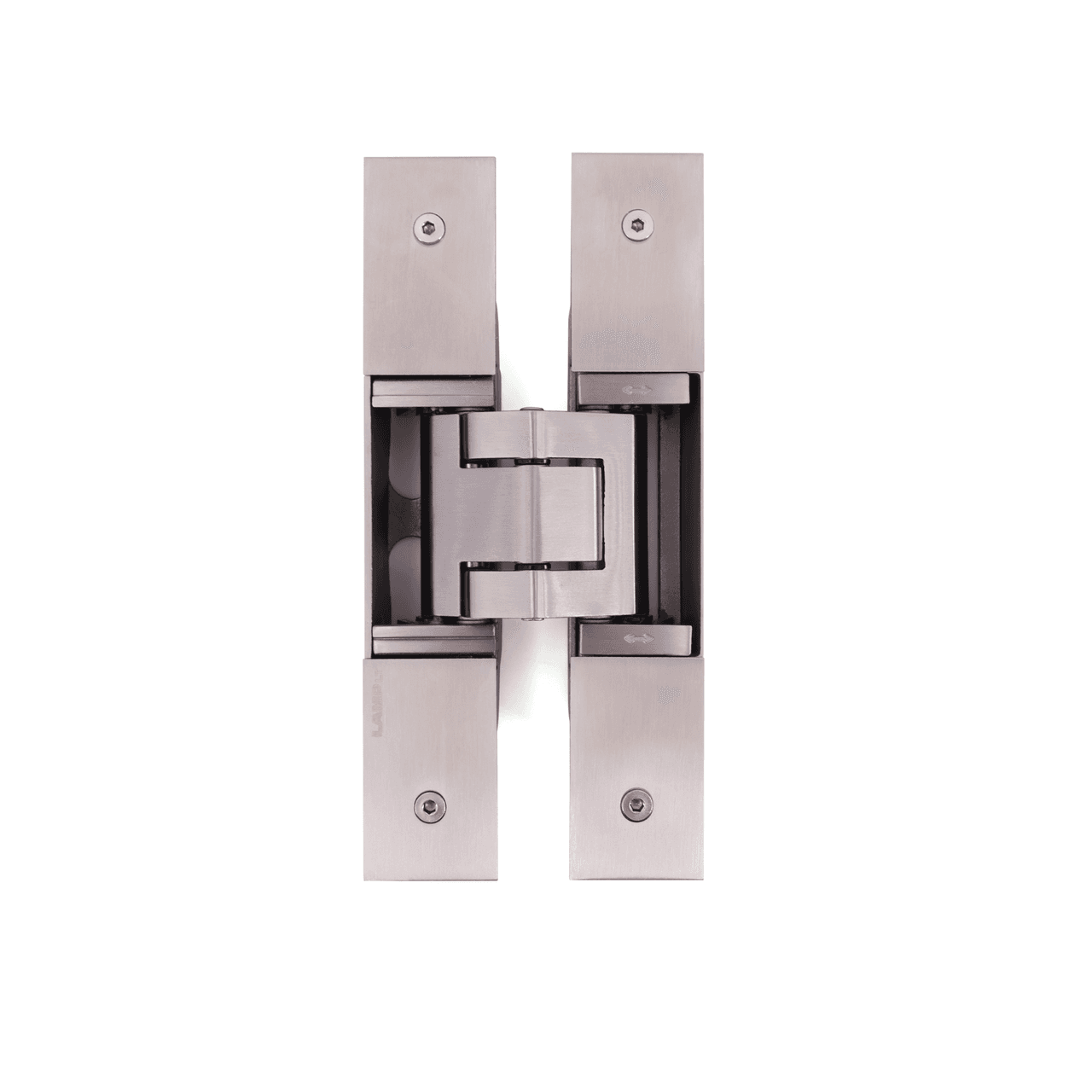

  • Optional square cover plates available, order part number suga-HGS3D-S160SH-SQPLATE

Specifications

Height: 6-3/8"
