Sugatsune HT-160THV2: 2-1/2" Concealed Clip-On Cabinet Hinge Body - Nickel

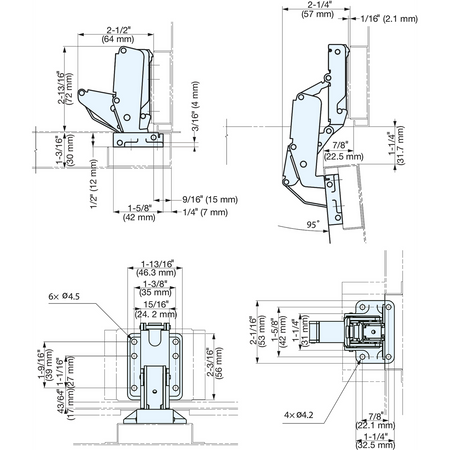

Line Drawing
Sugatsune HT-160THV2: 2-1/2" Concealed Clip-On Cabinet Hinge Body - Nickel

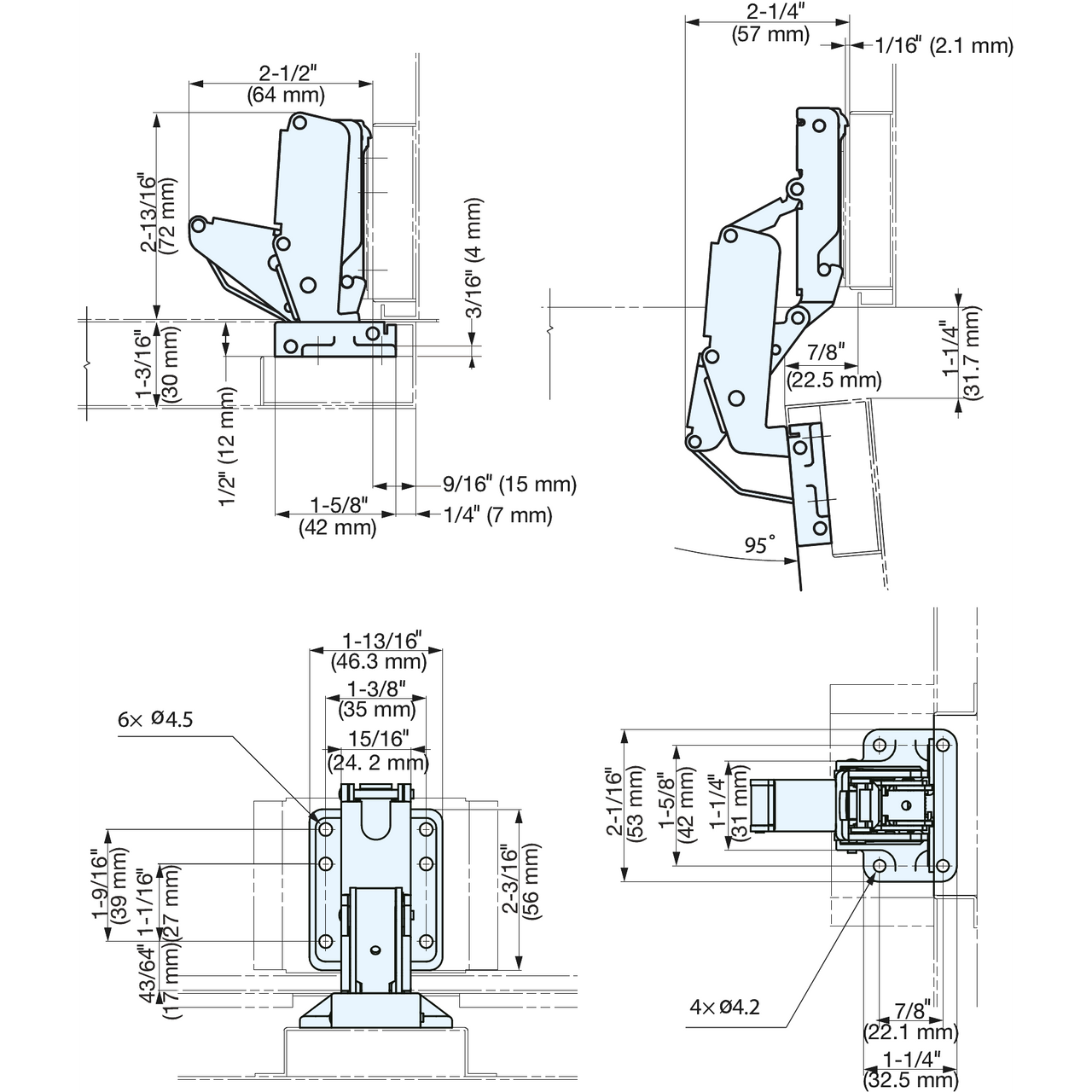

Line Drawing

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Sugatsune HT-160THV2: 2-1/2" Concealed Clip-On Cabinet Hinge Body - Nickel

Sugatsune
|
SKU: suga-HT-160THV2
In stock
(0)
$16.92
-15% $19.90 $16.92

IMPORTANT!

This item has specific information available that should be reviewed before purchasing. Please click the button below to see more.

View Sugatsune Catalog
Usually Ships In 1 to 3 Business Days

Have Questions? Ask an Expert!

888-566-2748 Email Us

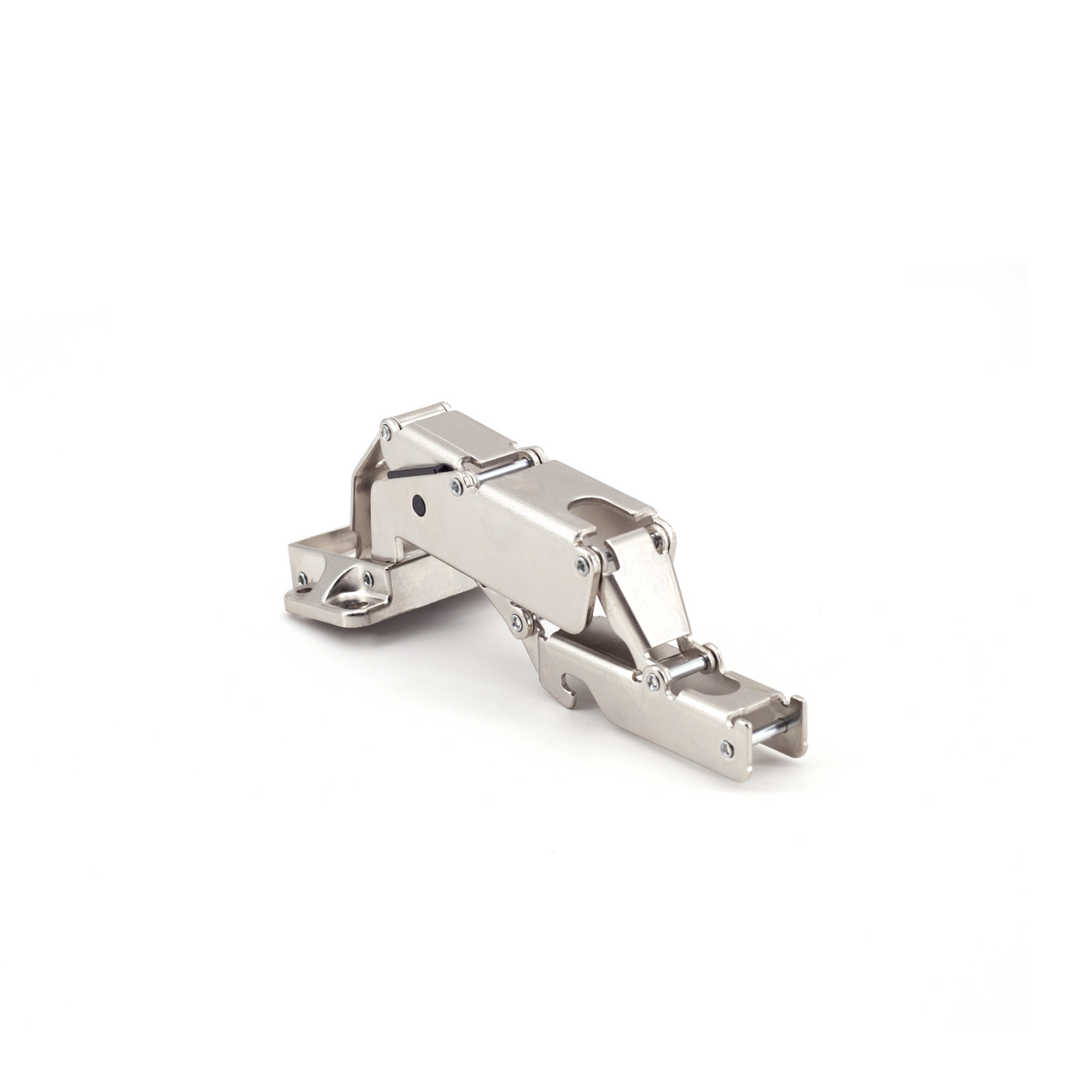

Sugatsune HT-160THV2: 2-1/2" Concealed Clip-On Cabinet Hinge Body in Nickel finish.
  • 95 degrees opening angle
  • Door opens without hitting adjacent cabinets
  • Clip-on feature allows easy door installation and removal
  • Hinge body and mounting plate sold separately
  • Mounting plate is part number: suga-HT-160TZ
  • Sold by each
  • Mounting hardware not included
Click here to view the Sugatsune catalog page for more information about this item

Specifications

Height: 2.09″
Width: 3.35″
Depth: 3.46″
