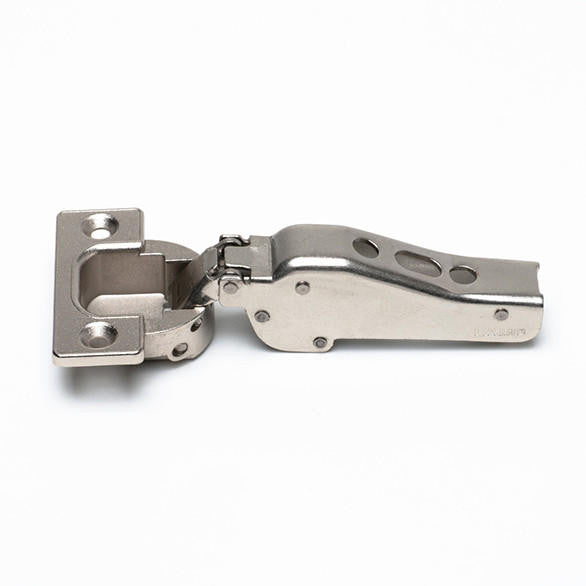

Sugatsune J95-C24/16T-NI: 16mm Overlay Heavy-Duty Concealed Hinge (soft close) - Nickel

Sugatsune
|
SKU: suga-J95-C24/16T-NI
In stock
(0)
$31.88
-15% $37.50 $31.88
Click here to view the Sugatsune catalog page for more information about this item
Usually Ships In 1 to 3 Business Days

Have Questions? Ask an Expert!

888-566-2748 Email Us

Sugatsune J95-C24/16T-NI: 16mm Overlay Heavy-Duty Concealed Hinge (soft close) in Nickel finish. For 16mm (5/8") Overlay cabinet doors. Clip-on type for easy installation with 3-way adjustment. Mounting hardware included.


Mounting Plate required to complete set (sold separately)

  • Order suga-J95-P6T-NI


Dimensions

  • Load capacity, 2 hinges: 55 lbs.
  • Load capacity, 3 hinges: 88 lbs.
  • Maximum door width, 2 hinges: 31-1/2"
  • Maximum door width: 3 hinges: 35-7/16"


Optional Covers for Hinge and Mounting Plate (sold separately)

    • Cup Cover: suga-J95CC-BC (black chrome), suga-J95CC-GR (grey) or suga-J95CC-NI (nickel)
    • Mounting Plate Cover: suga-J95ZC-BC (black chrome), suga-J95ZC-GR (grey) or suga-J95ZC-NI (nickel)
    • Safety Cover (locks release lever for drop-out prevention): suga-J95SC-16BC (black chrome), suga-J95SC-16GR (grey) or suga-J95SC-16NI (nickel)
Click here to view the Sugatsune catalog page for more information about this item

Specifications

Height: 2.56″
Width: 1.81″
Depth: 1.33″
