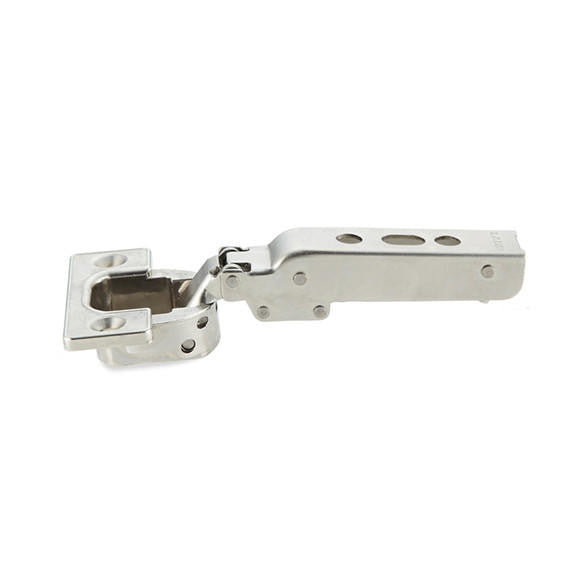

Sugatsune J95-C24/25T-NI: 25mm Overlay Heavy-Duty Concealed Hinge (soft close) - Nickel

SKU: suga-J95-C24/25T-NI
(0)
$30.29
-15% $35.64 $30.29
In stock
Usually Ships In 1 to 3 Business Days

Ask an expert!

Email 888-566-2748
Sugatsune J95-C24/25T-NI: 25mm Overlay Heavy-Duty Concealed Hinge (soft close) in Nickel finish. For 25mm (1") overlay cabinet doors. Clip-on type for easy installation with 3-way adjustment.
Mounting Plate Required (sold separately)
  • Order suga-J95-P6T-NI
  • Each hinge set requires 6 screws, sold separately. Order suga-TAP3515NI
    Dimensions
    • Load capacity, 2 hinges: 55 lbs.
    • Load capacity, 3 hinges: 88 lbs
    • Maximum door width, 2 hinges: 31-1/2"
    • Maximum door width: 3 hinges: 35-7/16"

    Optional Covers for Hinge and Mounting Plate (sold separately)
    • Cup Cover: suga-J95CC-BC (black chrome), suga-J95CC-GR (grey) or suga-J95CC-NI (nickel)
    • Mounting Plate Cover: suga-J95ZC-BC (black chrome), suga-J95ZC-GR (grey) or suga-J95ZC-NI (nickel)
    • Safety Cover (locks release lever for drop-out prevention): suga-J95SC-25BC (black chrome), suga-J95SC-25GR (grey) or suga-J95SC-25NI (nickel)
Height: 2.56″
Width: 1.81″
Depth: 1″
