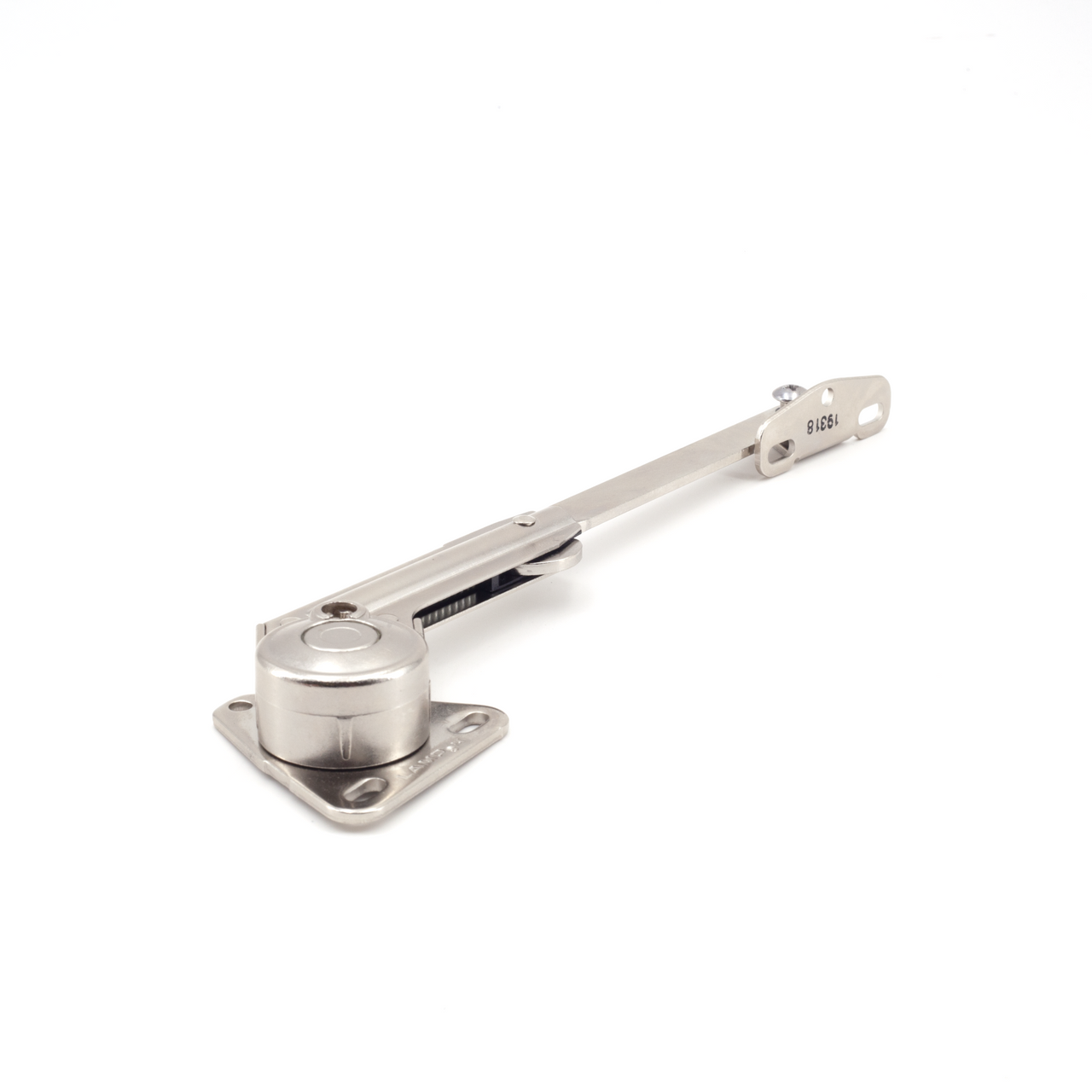

Sugatsune NSDX-35LK: Adjustable Soft Down Lid Stay (left) - Nickel

Sugatsune
|
SKU: suga-NSDX-35LK
In stock
(0)
$28.05
-15% $33.00 $28.05
Usually Ships In 1 to 3 Business Days

Have Questions? Ask an Expert!

888-566-2748 Email Us
Sugatsune NSDX-35LK: Adjustable Soft Down Lid Stay (left) in Nickel finish.
  • Sugatsune Lapcon technology
  • For upward opening flap door or panel

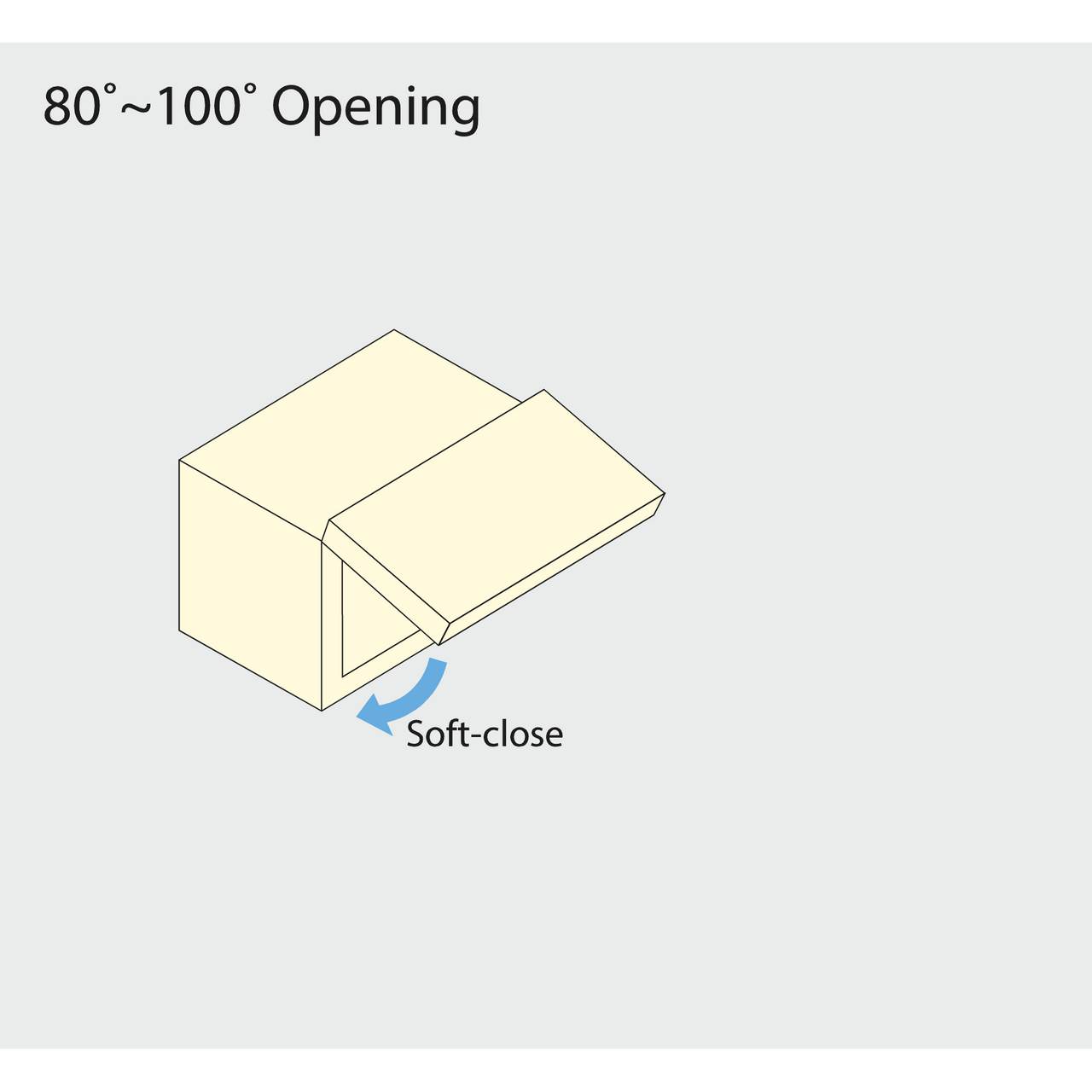

  • Opening angle 70, 90 or 100 degrees
  • Designed to hold door in fully opened position
  • Use with piano, butt or concealed hinges
  • Speed adjustment screw located on front for easy adjustment
  • Torque calculation: Torque = door height x 1/2 x door weight
  • Torque per stay: 19 to 60 lbs./inch
  • Torque per pair: 38 to 120 lbs./inch
  • Separate mounting bracket available for face frame cabinets. Order part number suga-FFCB-SD-1
  • Mounting hardware included

Specifications

Height: 208″
Width: 76.5″
Depth: 22″
