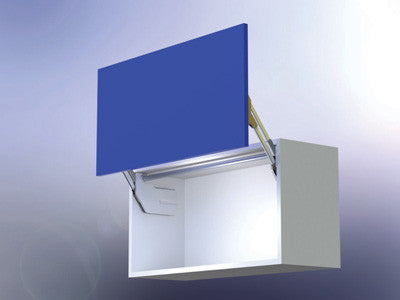

Sugatsune SLU-ELAN-H4: Vertical Lift-Up Stay For Cabinet Door - 11kg

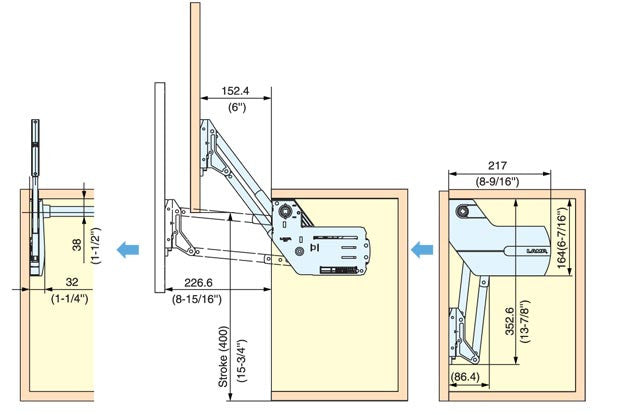

Line Drawing
Sugatsune SLU-ELAN-H4: Vertical Lift-Up Stay For Cabinet Door - 11kg
Line Drawing

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Sugatsune SLU-ELAN-H4: Vertical Lift-Up Stay For Cabinet Door - 11kg

Sugatsune
|
SKU: suga-SLU-ELAN-H4
Only 2 left
(0)
$463.35
-15% $545.11 $463.35
Usually Ships In 1 to 3 Business Days
Select Connecting Bar Size (For Width of Cabinet)**

Have Questions? Ask an Expert!

888-566-2748 Email Us
Sugatsune Hardware SLU-ELAN-H4: 11kg Vertical Lift-Up Stay For Cabinet Door.
  • Lift assist mechanism for vertical swing lift-up cabinet doors
  • Patented Sugatsune LAPCON technology
  • Door stays in any desired position
  • Damper equipped for soft and silent closing at the end
  • Simple installation by mounting guide plate and slide-in main body
  • No hinges required
  • Connecting Bar stays on top for maximum access. Recommended door dimensions:
    -Maximum width: 70-7/8"
    -Height: 15-3/8" to 19-11/16"
    -Weight: 20.9 to 24.2 lbs.
  • Optional face frame bracket available, sold separately. Order part number suga-FFCB-SLU

NOTE: Order connecting bar separately
  • Choose correct bar from the chart below
  • Click on the correct bar from the dropdown box to order

Specifications

Height: 8.54″
Width: 1.26″
Depth: 13.88″

Buy in bulk

Variant Quantity Price Total
ELB-480 Connecting Bar (+$16.00) suga-SLU-ELAN-H4
$463.35
$545.11 $463.35
$0.00
$463.35
$545.11 $463.35
$0.00
ELB-780 Connecting Bar (+$22.00) suga-SLU-ELAN-H4
$463.35
$545.11 $463.35
$0.00
$463.35
$545.11 $463.35
$0.00
ELB-1080 Connecting Bar (+$33.00) suga-SLU-ELAN-H4
$463.35
$545.11 $463.35
$0.00
$463.35
$545.11 $463.35
$0.00
ELB-1380 Connecting Bar (+$42.10) suga-SLU-ELAN-H4
$463.35
$545.11 $463.35
$0.00
$463.35
$545.11 $463.35
$0.00
ELB-1680, 66-9/64" long Connecting Bar (special order) (+$198.00) suga-SLU-ELAN-H4
$463.35
$545.11 $463.35
$0.00
$463.35
$545.11 $463.35
$0.00
