Home » Sugatsune LIN-X800-BL-S: MonoFlat Lateral Door Opening System - Black
Sugatsune LIN-X800-BL-S: MonoFlat Lateral Door Opening System - Black
Sugatsune LIN-X800-BL-S: MonoFlat Lateral Door Opening System - Black

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Sugatsune LIN-X800-BL-S: MonoFlat Lateral Door Opening System - Black

Sugatsune
|
SKU: suga-LIN-X800-BL-S
In stock
(0)
$1,234.20
-15% $1,452.00 $1,234.20
Usually Ships In 1 to 3 Business Days

Have Questions? Ask an Expert!

888-566-2748 Email Us

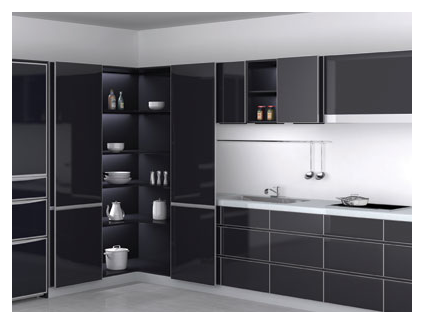

Sugatsune LIN-X800-BL-S: MonoFlat Lateral Door Opening System in black finish.

  • Lateral opening mechanism allows door to swing out in a limited radius, ideal for tight space application
  • 4-way adjustable: Vertical, horizontal, depth and parallel
  • Built-in dampers provide smooth soft-close movement
  • Non-handed, can be used for left or right opening doors
  • Designed for overlay installation, but can be installed flush with the surrounding cabinet or wall

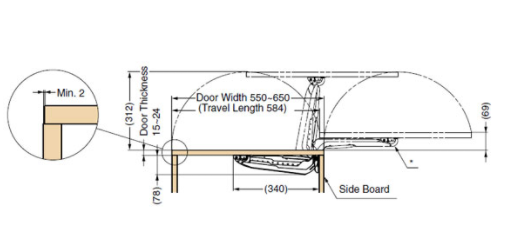

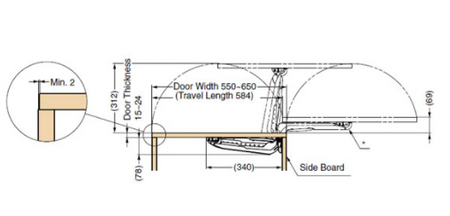

Door Dimensions:

  • Width: 29-1/2" to 33-7/16"
  • Maximum height: 94-1/2"
  • Thickness: 15/16" to 1-9/16"
  • Maximum weight: 88 lbs./door

Standard Kit Includes:

  • 1 each, A and B hinge
  • 1 x 2100mm connecting bar
  • 4 x hanging side washer covers
  • 4 x Leading edge washer covers
  • 2 x rod covers

Specifications

Height: 82.68″
Width: 20.7″
Depth: 8.54″
