Sugatsune S-AT02S: Back Mount Spring-Loaded Lid Stay - Plain Stainless Steel

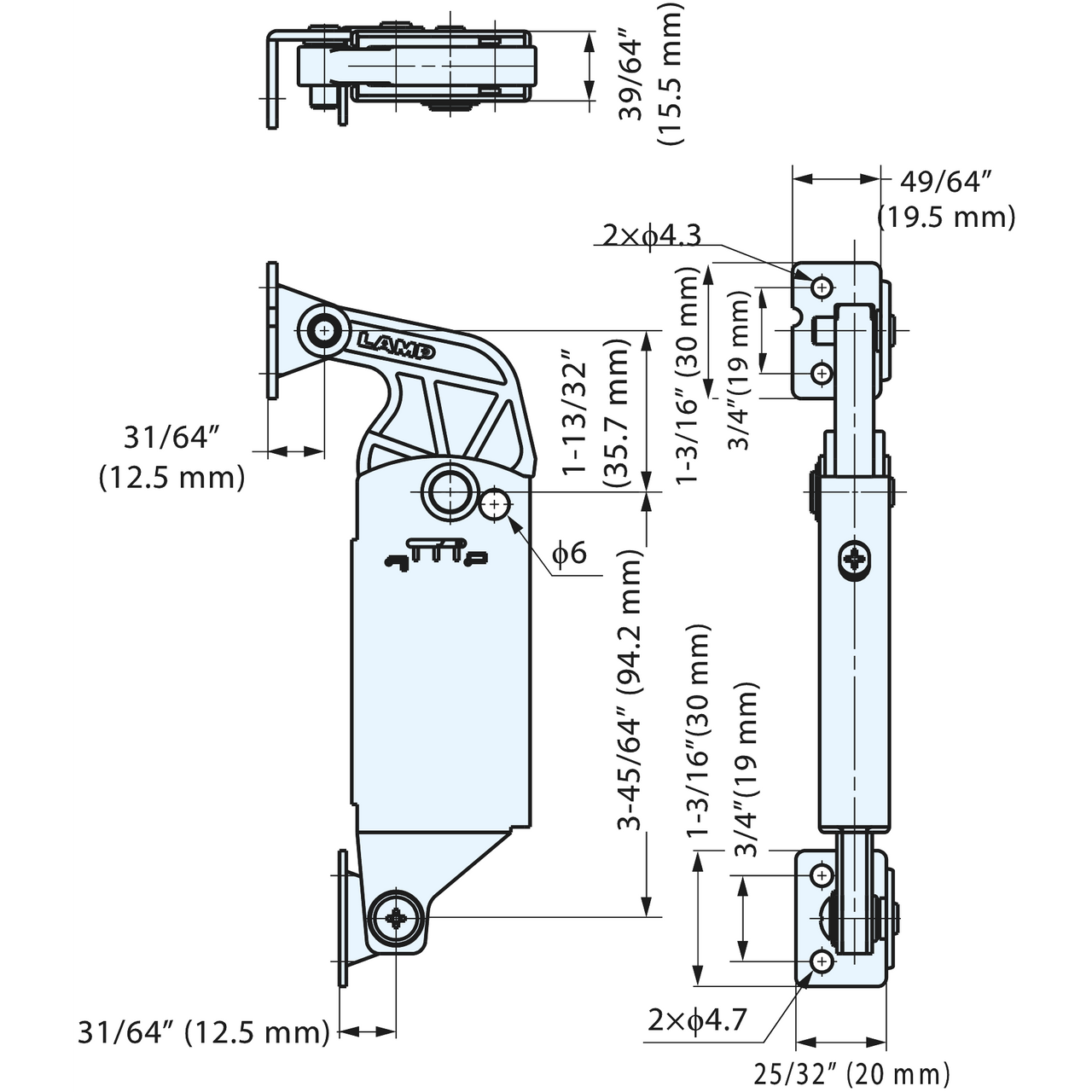

Line Drawing
Sugatsune S-AT02S: Back Mount Spring-Loaded Lid Stay - Plain Stainless Steel
Line Drawing

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Sugatsune S-AT02S: Back Mount Spring-Loaded Lid Stay - Plain Stainless Steel

Sugatsune
|
SKU: suga-S-AT02S
In stock
(0)
$36.98
-15% $43.50 $36.98

IMPORTANT!

This item has specific information available that should be reviewed before purchasing. Please click the button below to see more.

View Sugatsune Catalog
Usually Ships In 1 to 3 Business Days

Have Questions? Ask an Expert!

888-566-2748 Email Us

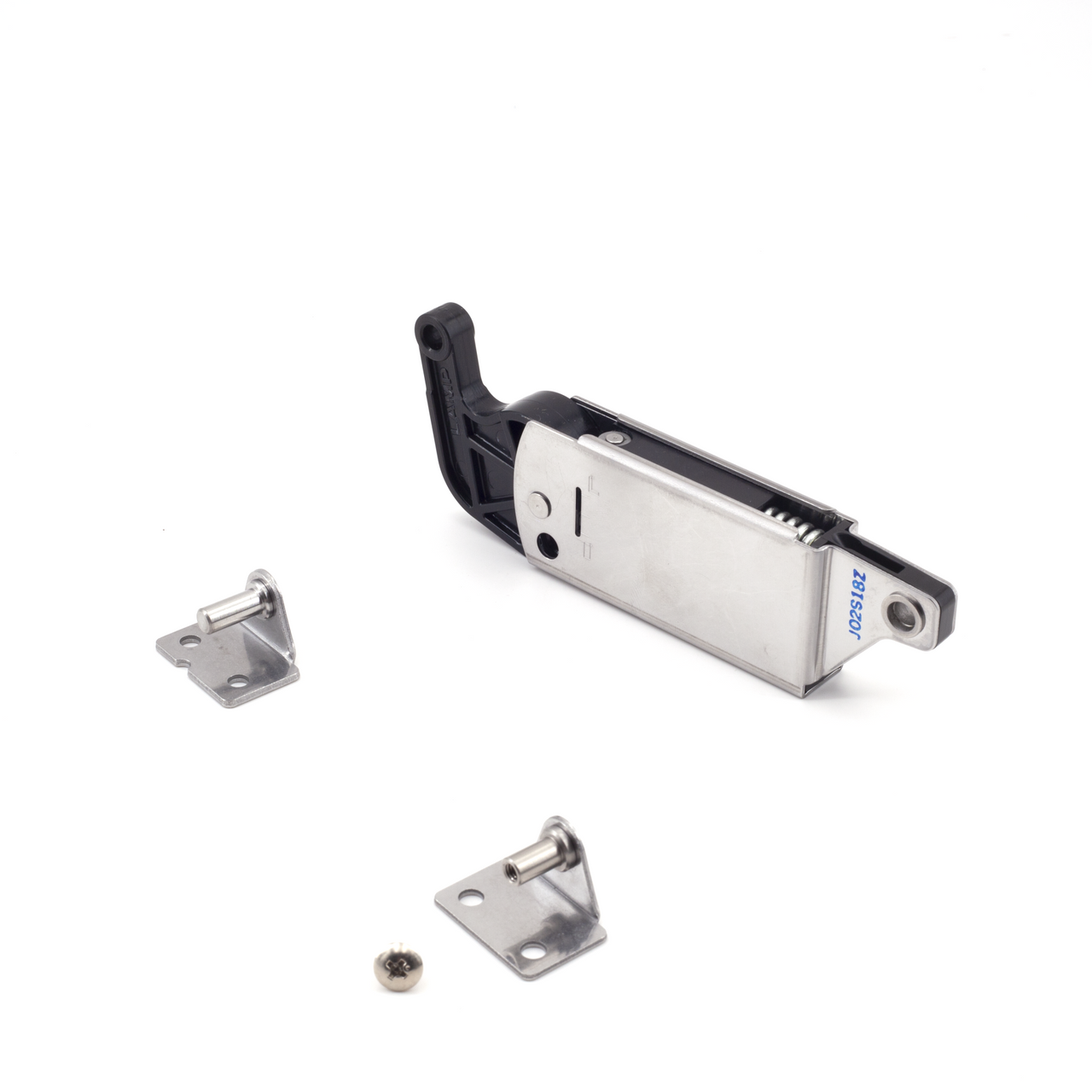

Sugatsune S-AT02S: Back Mount Spring-Loaded Lid Stay in Plain Stainless Steel.
  • For upward opening lids
  • Mounts to the back panel of the cabinet
  • Spring mechanism assists in lifting the lid and holding it in the open position (from 10° to 80°)
  • Can be used singly or in multiples
  • Non-handed
  • Does not work with concealed hinges
  • Torque rating: 104 lbs./inch
  • Torque calculation: Torque = Door height x .5 x door weight
  • Mounting hardware not included
Click here to view the Sugatsune catalog page for more information about this item

Specifications

Height: 2.56″
Width: 0.81″
Depth: 5″
