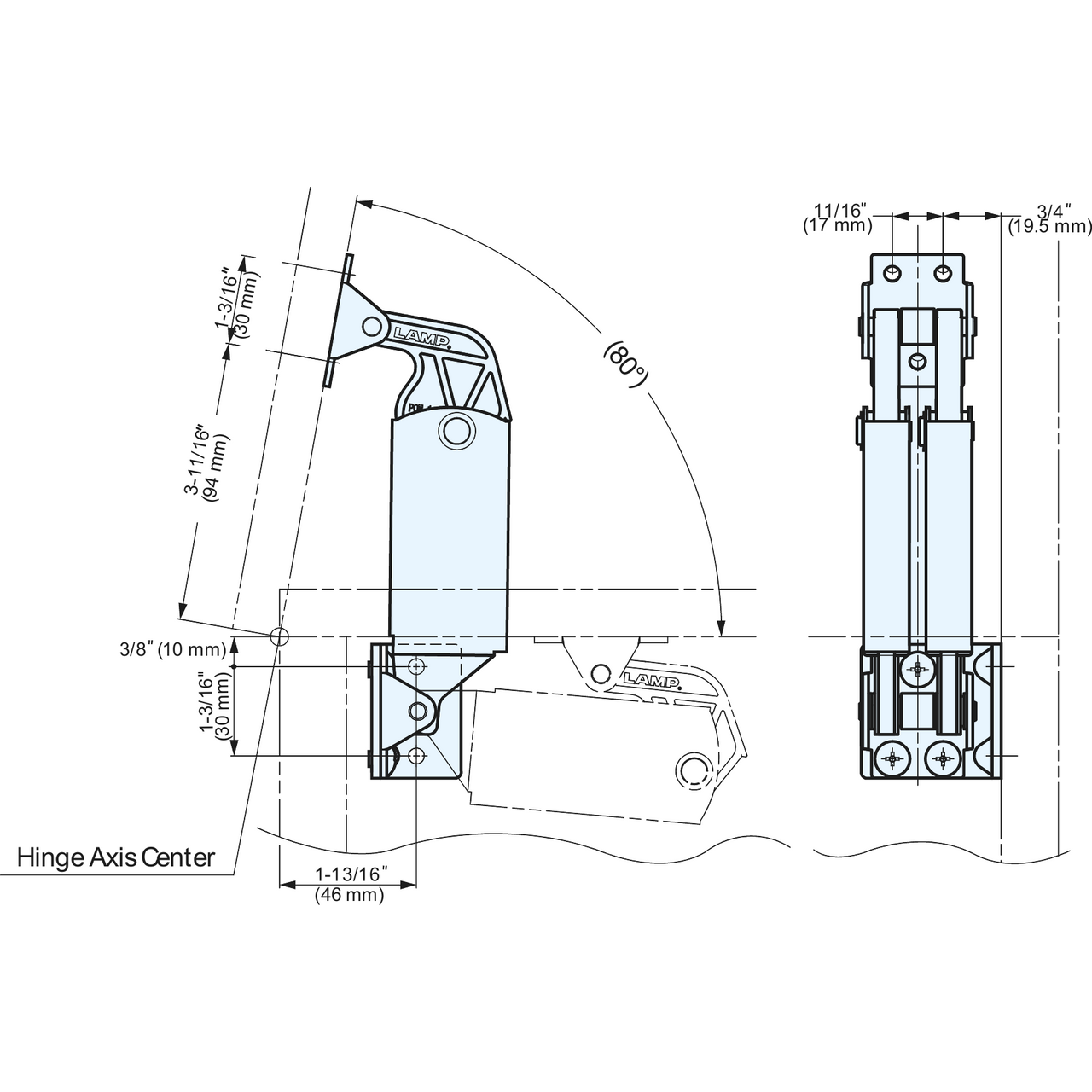

Line Drawing
Sugatsune S-AT02W: Heavy Duty Spring Loaded Lid Stay - Plain Stainless Steel
Line Drawing

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Sugatsune

Sugatsune S-AT02W: Heavy Duty Spring Loaded Lid Stay - Plain Stainless Steel

SKU: suga-S-AT02W
(0)
$87.30
-15% $102.70 $87.30
Out of stock

Got questions?

Feel free to get in touch

Ask an expert!

Email 888-566-2748
Sugatsune S-AT02W: Heavy Duty Spring Loaded Lid Stay in Plain Stainless Steel.
  • For upward opening lids
  • Mounts to the side or back panel of the cabinet
  • Spring mechanism assists in lifting the lid and holding it in the open position (from 10° to 80°)
  • Can be used singly or in multiples
  • Does not work with concealed hinges
  • Torque rating, side mount: 156 to 186.1 lbs./inch

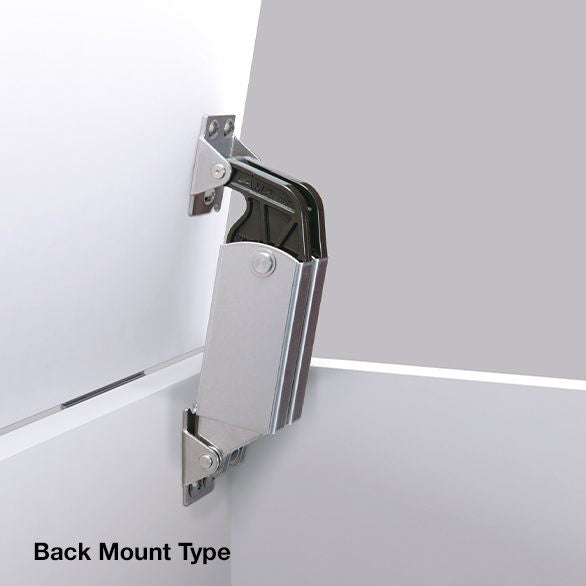

  • Torque rating, back mount: 133 to 146.1 lbs./inch
  • Torque calculation: Torque = Door height x .5 x door weight
  • Mounting hardware not included
Height: 2.42″
Width: 1.87″
Depth: 5.12″
