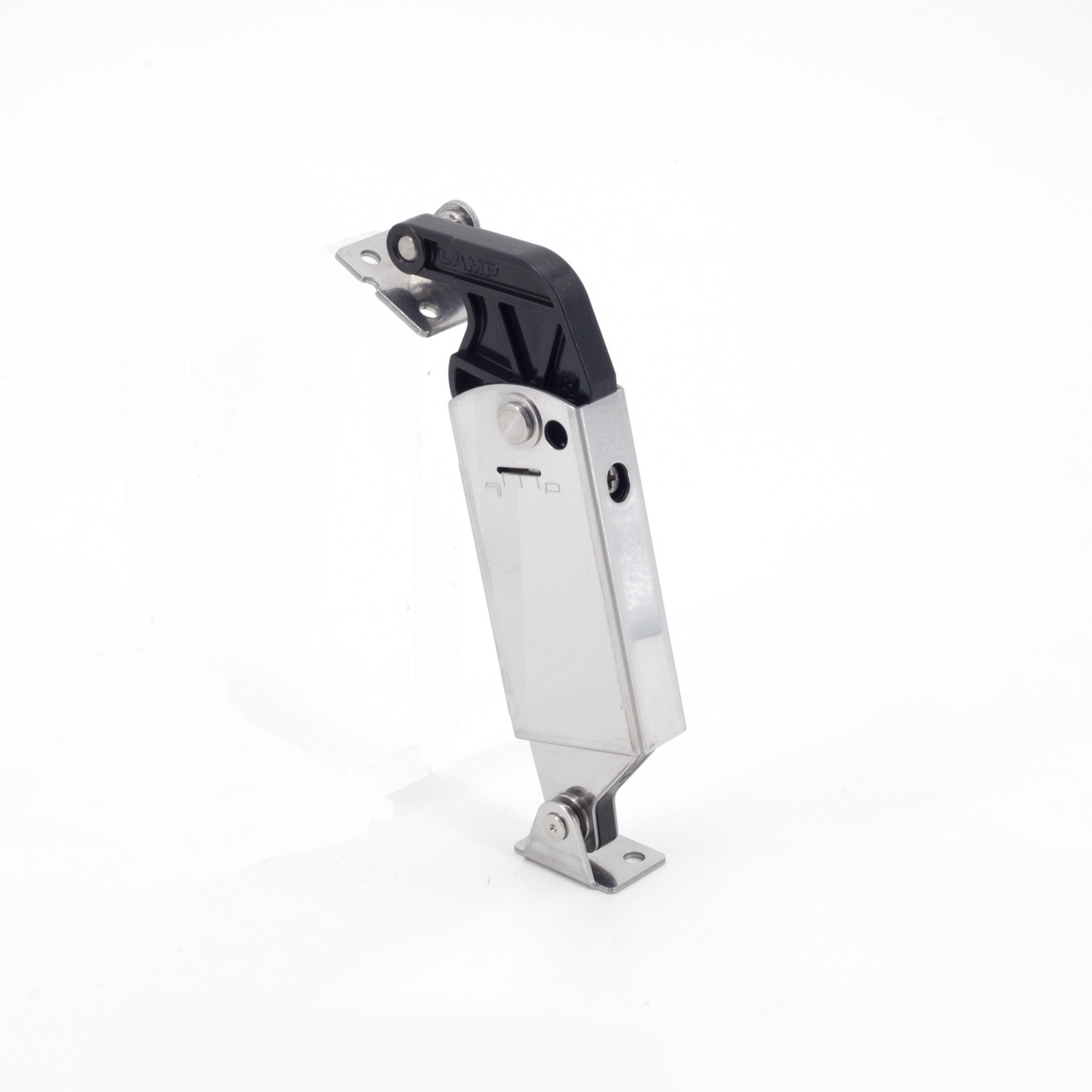

Sugatsune S-ATJ02: Balance Adjustable Spring Loaded Lid Stay - Black/Plain Stainless Steel

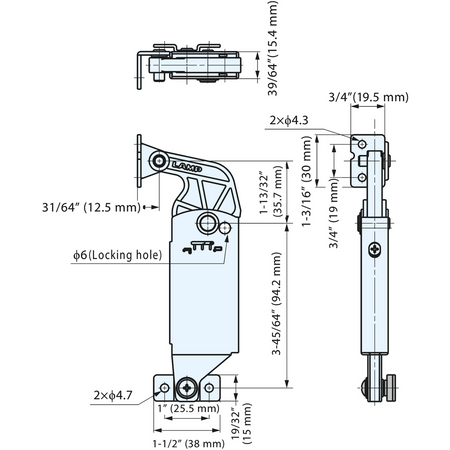

Line Drawing
Sugatsune S-ATJ02: Balance Adjustable Spring Loaded Lid Stay - Black/Plain Stainless Steel

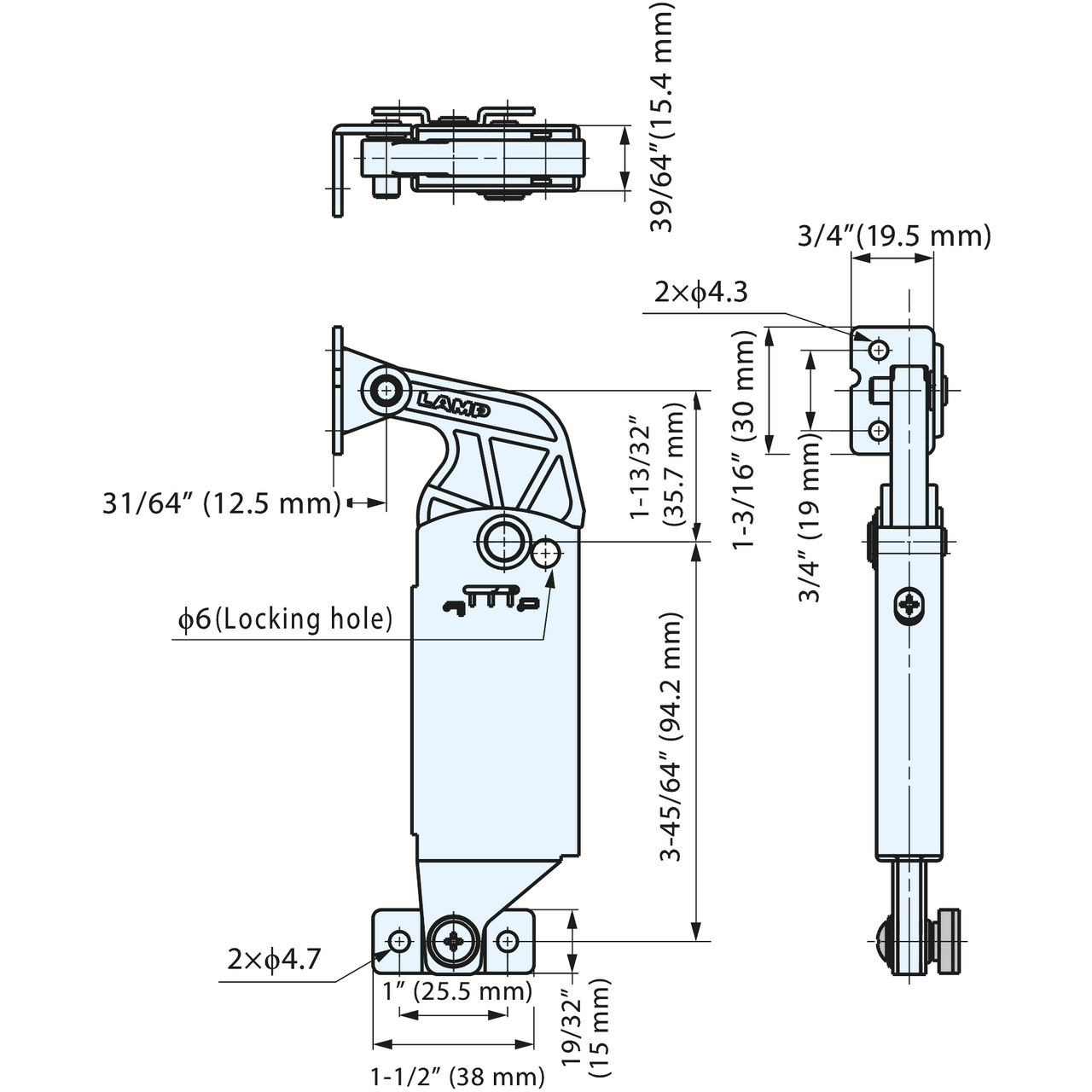

Line Drawing

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Sugatsune S-ATJ02: Balance Adjustable Spring Loaded Lid Stay - Black/Plain Stainless Steel

Sugatsune
|
SKU: suga-S-ATJ02
In stock
(0)
$45.48
-15% $53.50 $45.48
Usually Ships In 1 to 3 Business Days

Have Questions? Ask an Expert!

888-566-2748 Email Us
Sugatsune S-ATJ02: Balance Adjustable Spring Loaded Lid Stay in Black/Plain Stainless Steel.
  • For upward opening lids
  • Mounts to side panel of cabinet
  • Spring mechanism assists in holding the lid in the open position (from 10° to 80°)
  • Balance adjustment allows for a wider range of lids
  • Can be installed individually or in pairs
  • Non-handed
  • Does not work with concealed hinges
  • Torque rating: 104 lbs./inch
  • Torque calculation: Torque = door height x .5 x door weight
  • Optional soft-close damper available, sold separately
  • Order part number suga-S-ATD
  • Mounting hardware not included

Specifications

Height: 2.36″
Width: 1″
Depth: 6.22″
