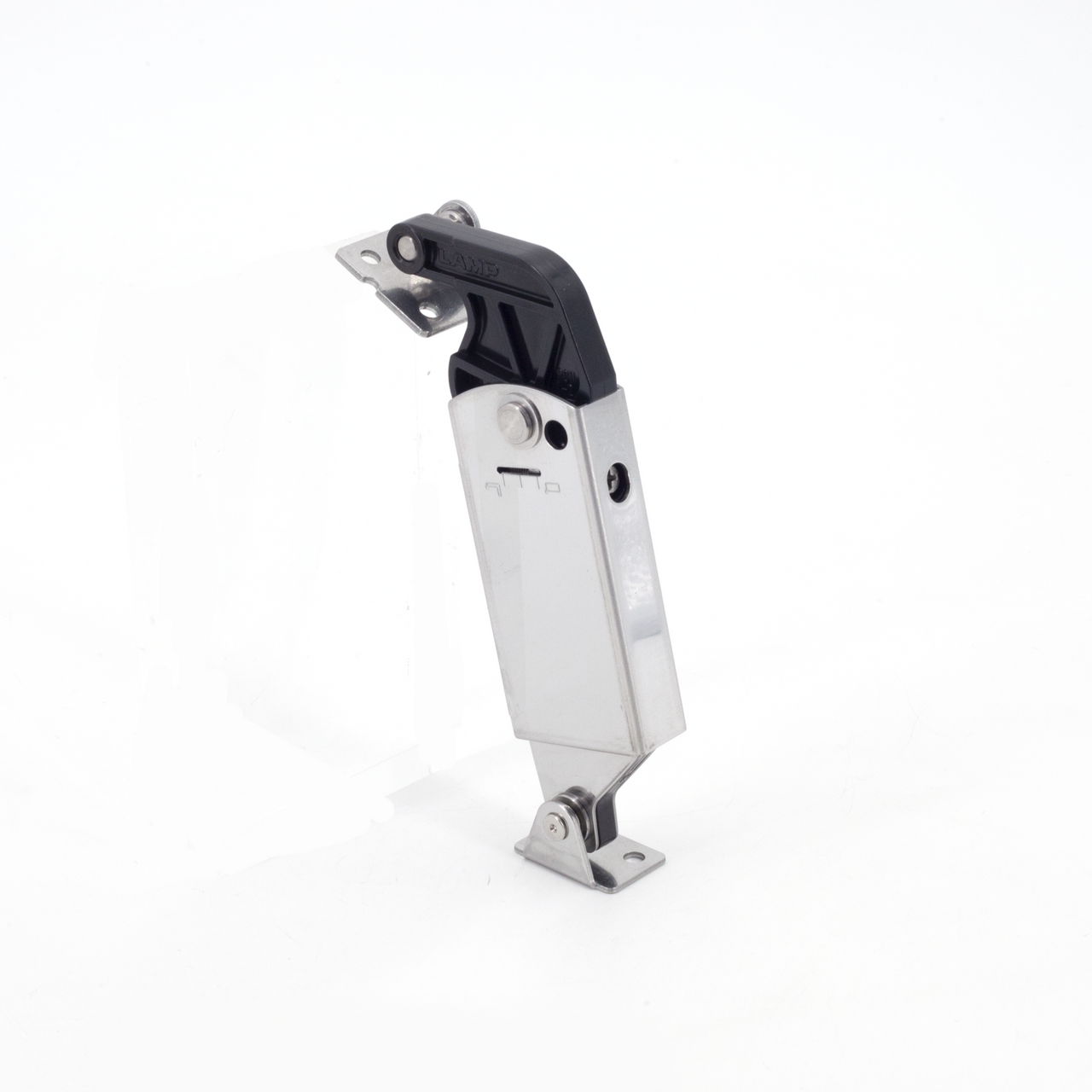

Sugatsune S-ATJ02S: Balance Adjustable Spring Loaded Lid Stay - Black/Plain Stainless Steel

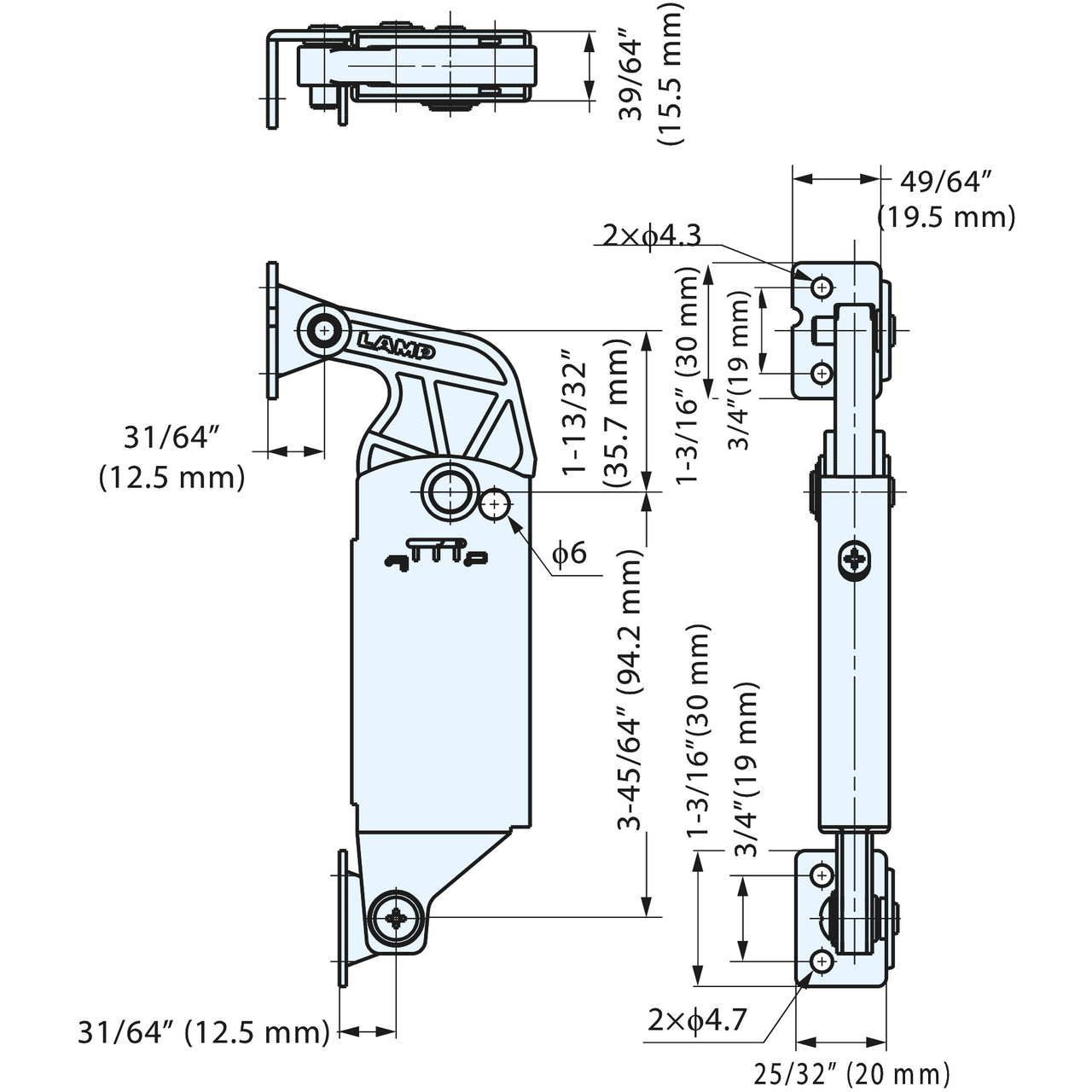

Line Drawing
Sugatsune S-ATJ02S: Balance Adjustable Spring Loaded Lid Stay - Black/Plain Stainless Steel
Line Drawing

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Sugatsune S-ATJ02S: Balance Adjustable Spring Loaded Lid Stay - Black/Plain Stainless Steel

Sugatsune
|
SKU: suga-S-ATJ02S
In stock
(0)
$52.36
-15% $61.60 $52.36

IMPORTANT!

This item has specific information available that should be reviewed before purchasing. Please click the button below to see more.

View Sugatsune Catalog
Usually Ships In 1 to 3 Business Days

Have Questions? Ask an Expert!

888-566-2748 Email Us
Sugatsune S-ATJ02S: Balance Adjustable Spring Loaded Lid Stay in Black/Plain Stainless Steel.
  • For upward opening lids
  • Mounts to back panel of cabinet
  • Spring mechanism assists in holding the lid in the open position (from 10° to 80°)
  • Balance adjustment allows for a wider range of lids
  • Can be installed individually or in pairs
  • Non-handed
  • Does not work with concealed hinges
  • Torque rating: 78 lbs./inch
  • Torque calculation: Torque = door height x .5 x door weight
  • Optional soft-close damper not available
  • Mounting hardware not included
Click here to view the Sugatsune catalog page for more information about this item

Specifications

Height: 2.56″
Width: 0.85″
Depth: 5.79″
