Description

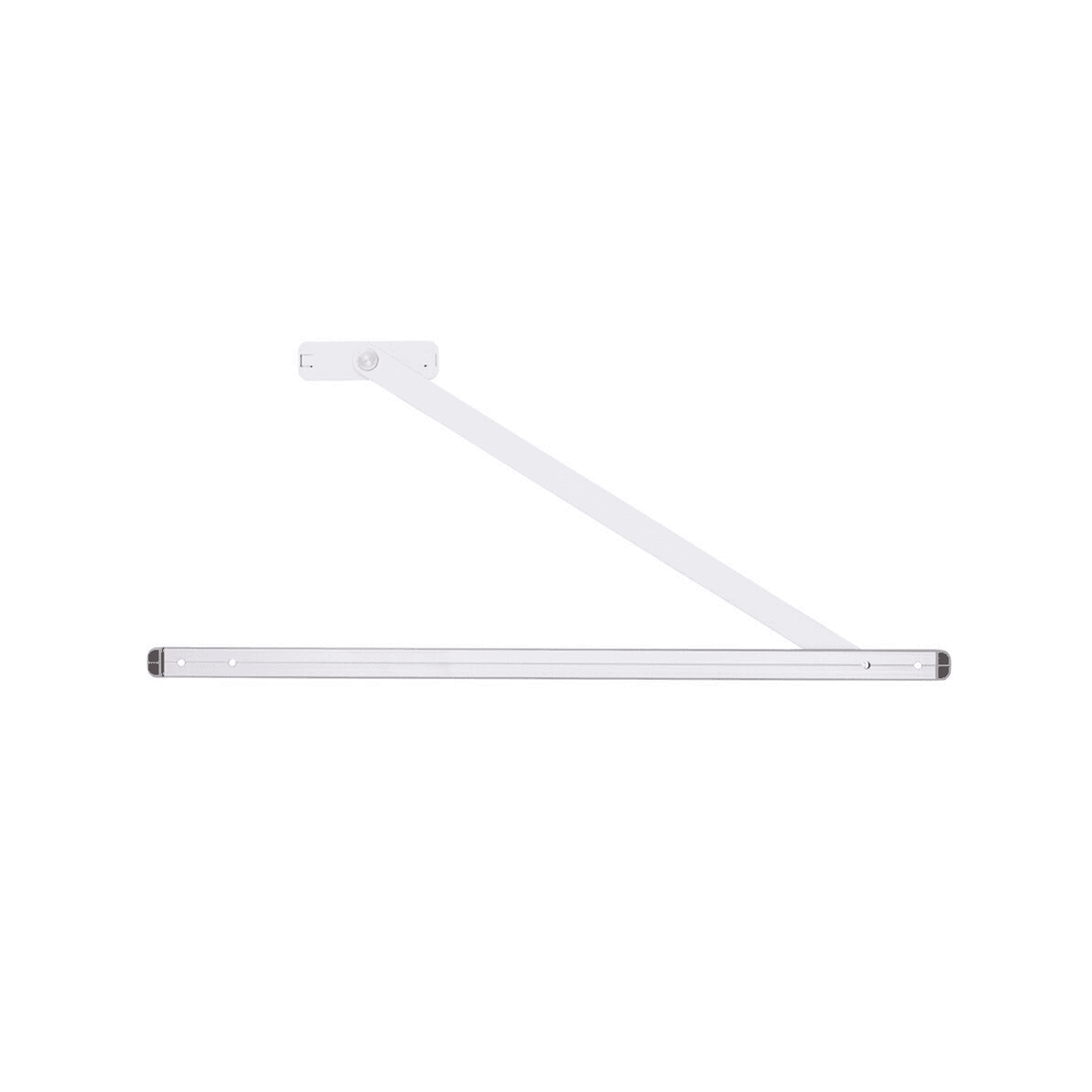

Sugatsune SAS-V600-WT: Concealed Overhead Door Stopper in White finish.

• Designed for use with the Sugatsune HES2S series concealed hinges to achieve a flush door design
• Non-handed
• Hold-open type, prevents door from over-extending and holds door open at preferred angle
• For stop-only version order suga-SAS-V450-BL
• Adjustable from 0° to 110°

Door Dimensions

• Door width: 22-27/32" - 36"
• Door thickness: 1-3/16" - 2"
• Maximum door weight: 110 lbs.
• Maximum opening angle: 110°

Specifications

Height: 24.37007874015748″
Width: 0.9055118110236221″
Depth: 1.0236220472440944″
Country of Origin: Japan
