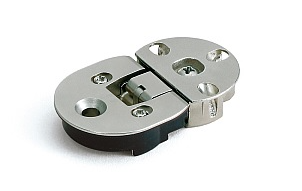

Sugatsune SDH-G: 40mm Glass Drop Lid Hinge - Nickel
Sugatsune SDH-G: 40mm Drop Hinge for Glass Door - Polished Nickel

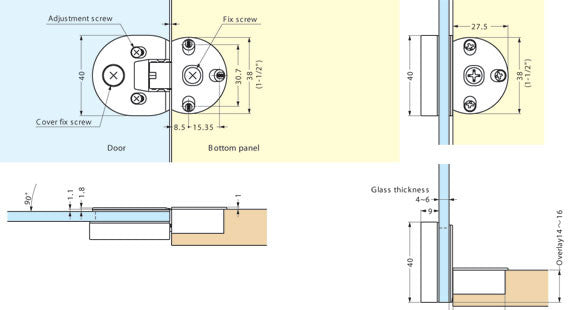

Line Drawing
Sugatsune SDH-G: 40mm Glass Drop Lid Hinge - Nickel
Sugatsune SDH-G: 40mm Drop Hinge for Glass Door - Polished Nickel

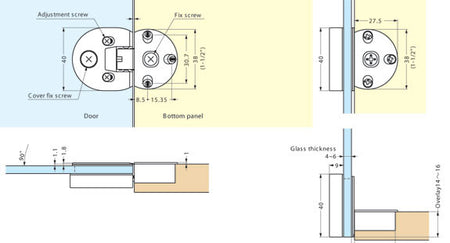

Line Drawing

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Sugatsune SDH-G: 40mm Drop Hinge for Glass Door - Polished Nickel

Sugatsune
|
SKU: suga-SDH-G
In stock
(0)
$21.86
-15% $25.72 $21.86
Usually Ships In 1 to 3 Business Days

Have Questions? Ask an Expert!

888-566-2748 Email Us
Sugatsune Hardware SDH-G: 40mm Drop Hinge for Glass Door in Polished Nickel finish.
  • Opening angle: 90 degrees to be flush with adjacent panel
  • Two way adjustability: overlay and door gap
  • Flush when open, ideal for writing desk application
  • Door Thickness: 5/8" to 3/4"
  • Overlay Coverage: 9/16" to 5/8"

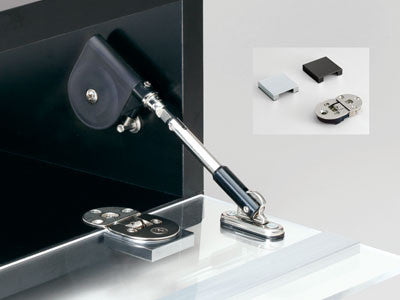

  • Compatible with downward opening lid stays, suga-SDS-100 series, suga-NSDX-10 series and suga-HDS-10 series, all sold separately
  • Mounting hardware not included

Specifications

Height: 1.69″
Width: 1.57″
Depth: 1.57″
