Home » Sugatsune SDH-P/WT: Adjustable Drop Lid Hinge w/Cover - Nickel/White
Sugatsune SDH-P/WT: Adjustable Drop Lid Hinge w/Cover - Nickel/White

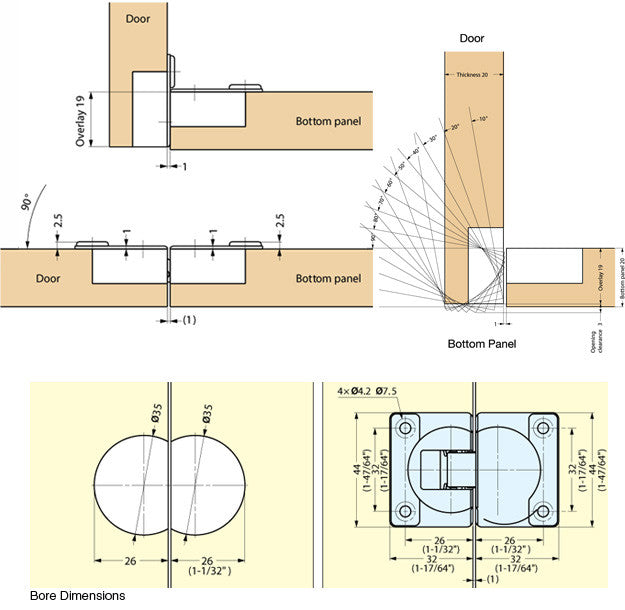

Line Drawing
Sugatsune SDH-P/WT: Adjustable Drop Lid Hinge w/Cover - Nickel/White
Line Drawing

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Sugatsune SDH-P/WT: Adjustable Drop Lid Hinge w/Cover - Nickel/White

Sugatsune
|
SKU: suga-SDH-P/WT
In stock
(0)
$7.56
-15% $8.89 $7.56
Usually Ships In 1 to 3 Business Days

Have Questions? Ask an Expert!

888-566-2748 Email Us

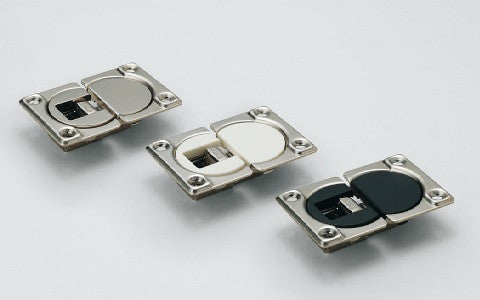

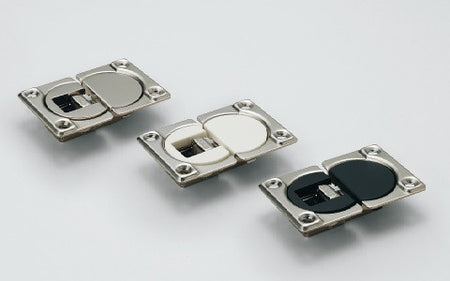

Sugatsune SDH-P/WT: Adjustable Drop Lid Hinge w/Cover in Nickel/White finish.
  • 90° opening angle
  • 2-way adjustment (overlay and door gap)
  • Flush when opened
  • Can be used with Sugatsune SDS-100, NSDX-10 and HDS-10 series soft-down lid stays, sold separately
  • Door thickness: 5/8" to 3/4"
  • Overlay coverage: 9/16" to 5/8"
  • Mounting hardware not included

Specifications

Height: 1.26″
Width: 1.73″
Depth: 1.76″
