Sugatsune NSDX-10LK/TV: Short Arm Adjustable Soft Down Lid Stay (left) - Nickel
Regular price
$34.00
Regular price
-15%
$40.00
Sale price
$34.00
IMPORTANT: This item has specific information available that needs to be reviewed before purchasing. Click the button below to see more.
View Complete Product Information HereCouldn't load pickup availability
Have Questions? Ask an Expert!

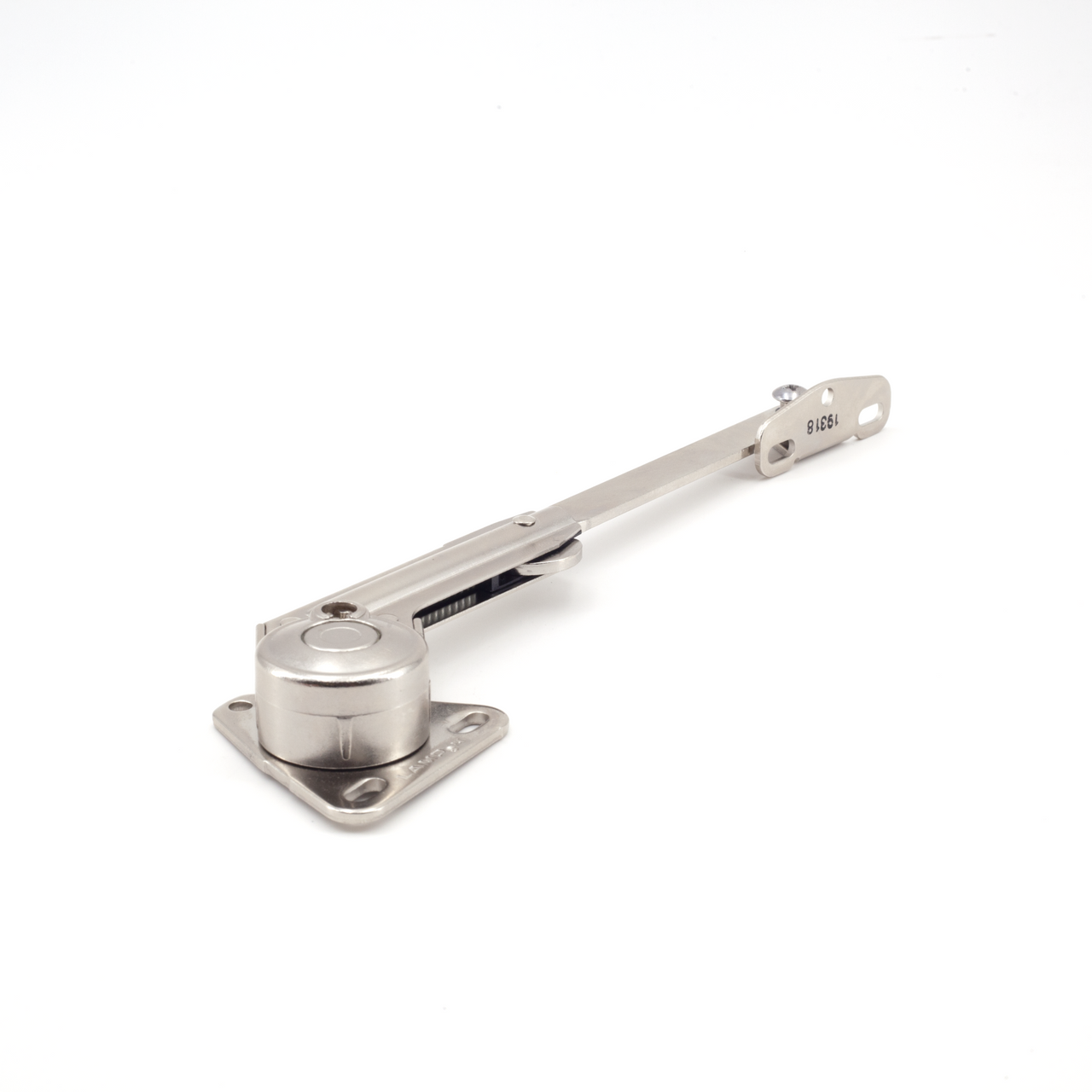

Sugatsune NSDX-10LK/TV: Short Arm Adjustable Soft Down Lid Stay (left) in Nickel finish.
- Sugatsune Lapcon technology

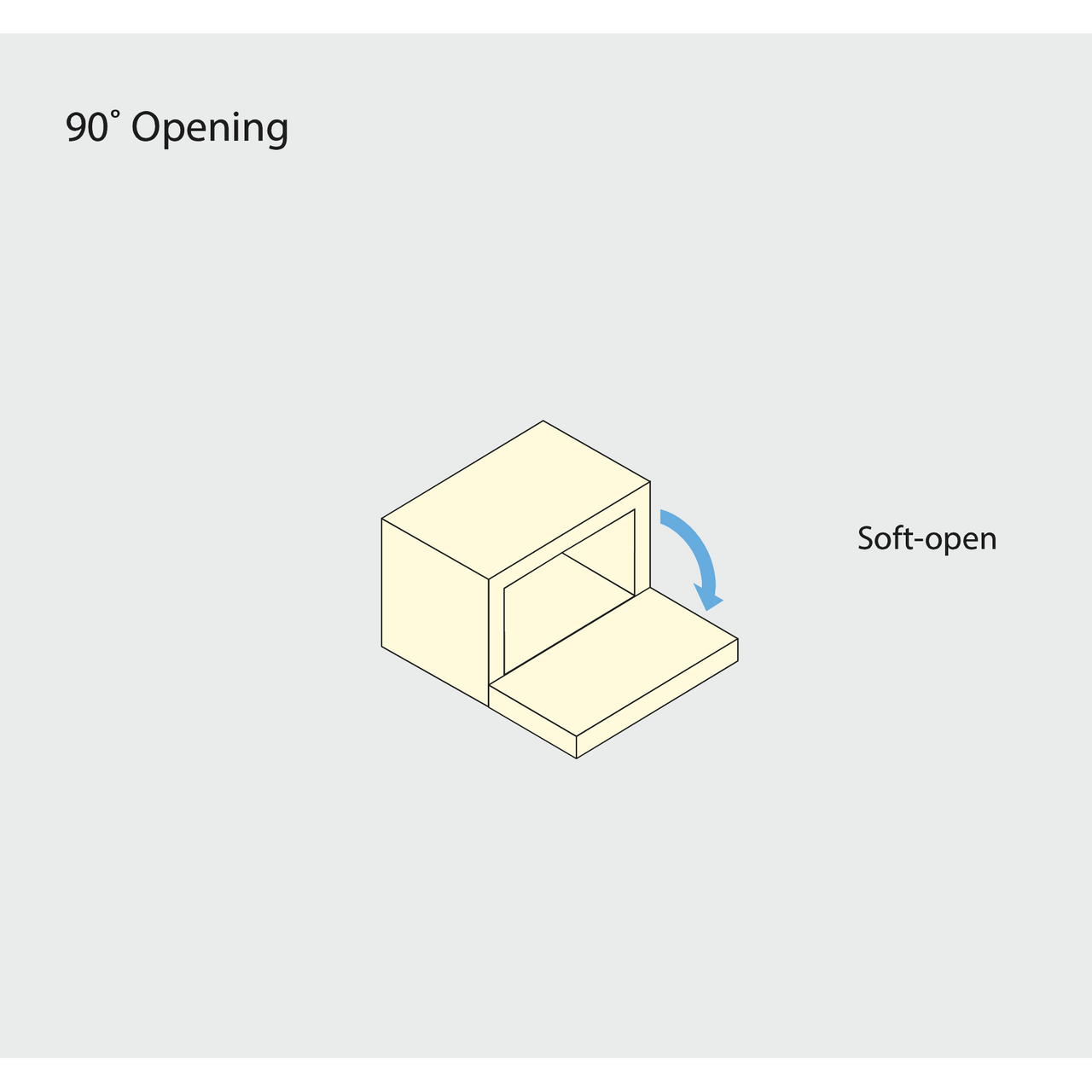

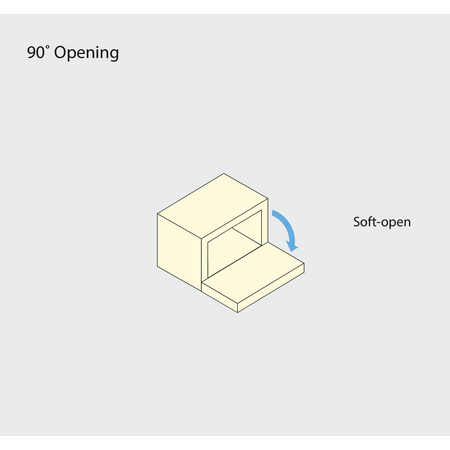

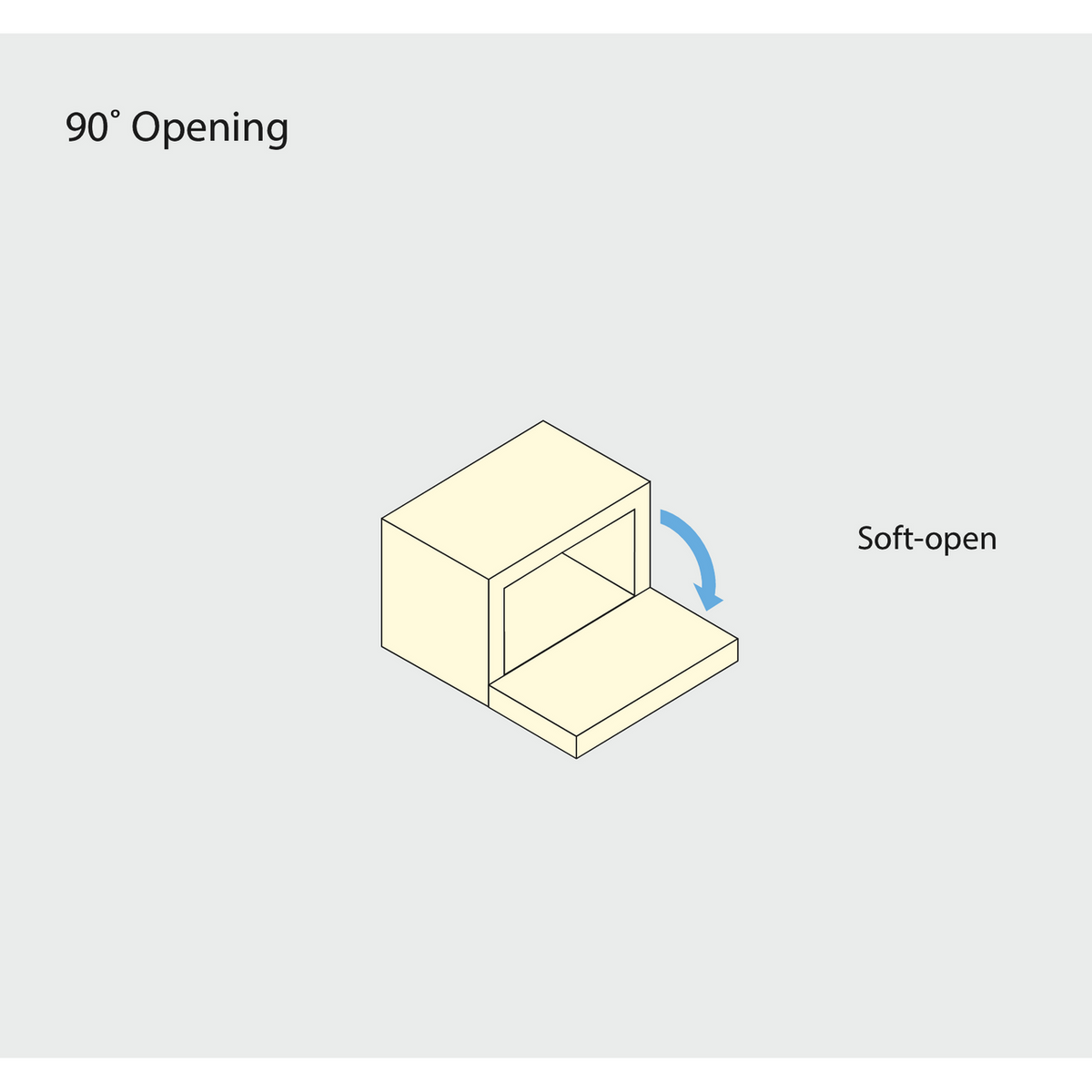

- For downward opening flap door or panel
- Short arm design for small doors
- Use with piano, butt or drop hinges
- Speed adjustment screw located on front for easy adjustment
- Torque calculation: Torque = door height x 1/2 x door weight
- Torque per stay: 8.7 to 17.4 lbs./inch
- Torque per pair: 17.4 to 34.7 lbs./inch
- Sold individually
- Image shows right-hand version
- Separate mounting bracket available for face frame cabinets. Order part number suga-FFCB-SD-1
- Mounting hardware included
Specifications
Height: 132″Width: 61″
Depth: 22″
