Home » Sugatsune SLDL-5: Heavy-Duty Swing Down Stay for Doors from 6.6 to 11 lbs.

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Sugatsune SLDL-5: Heavy-Duty Swing Down Stay for Doors from 6.6 to 11 lbs.

Sugatsune
|
SKU: suga-SLDL-5
In stock
(0)
$484.50
-15% $570.00 $484.50

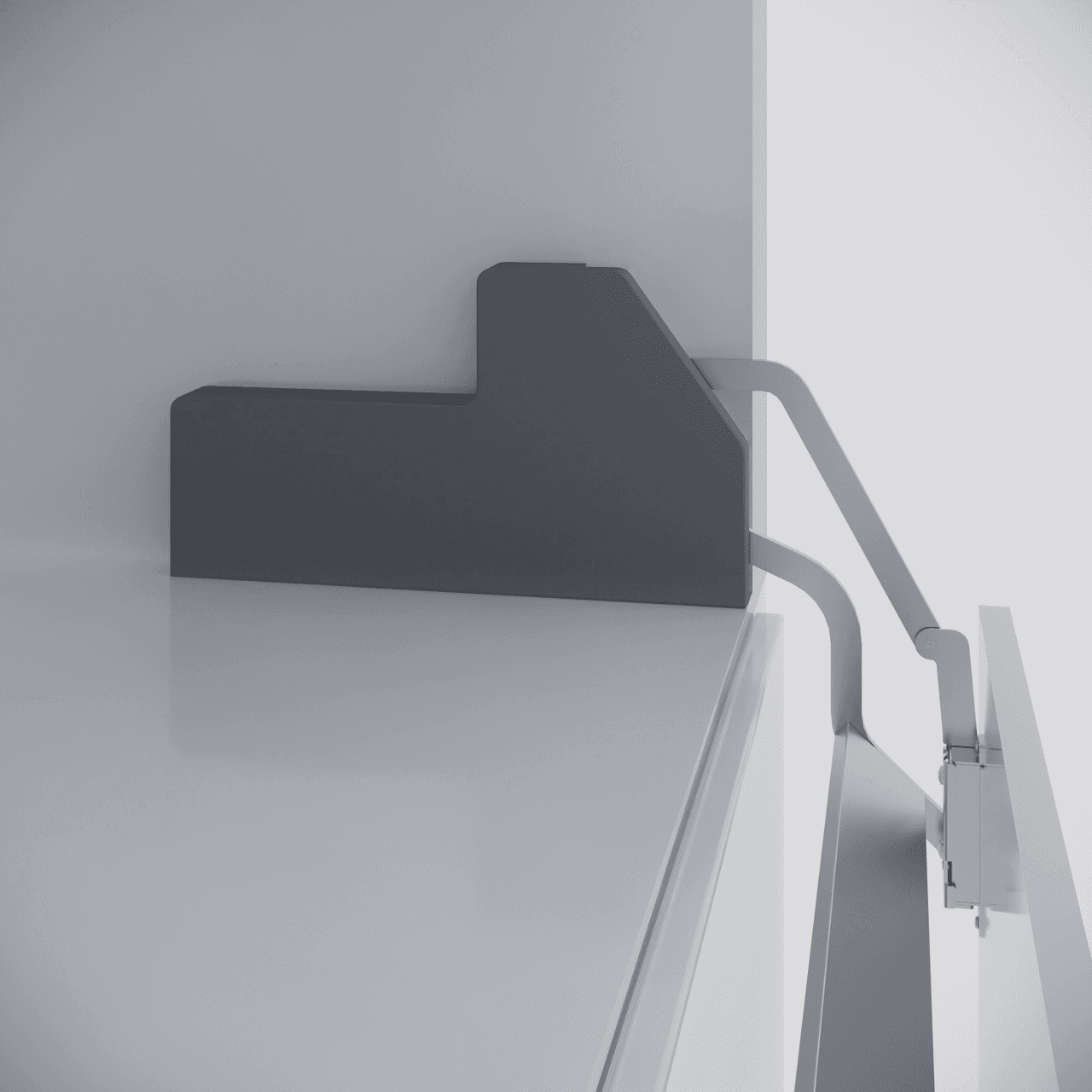

Sugatsune SLDL-5: Heavy-Duty Swing Down Stay for Doors from 6.6 to 11 lbs. Unique swing-down mechanism for downward opening cabinet doors.
  • For taller, heavier doors
  • For overlay doors only
  • Full set includes struts, body covers (sold separately and connecting bar (also sold separately)
  • Patented Lapcon technology provides soft-assist to gently open door and soft-close
  • Lift-assist is adjustable to match door's weight and height
  • 3-way adjustability: Vertical, horizontal and tilt
    Door Dimensions
    • Door height: 16-9/16" to 17-3/4"
    • Maximum door width: 35-7/16"
    • Door weight: 6.6 to 11 lbs.
      How to Order
      • Select a Body (sold as a set of left and right struts):suga-SLDL-5
      • Select a Body Cover (sold as a set of left and right): suga-SLUL-C-WT (white) or suga-SLUL-C-DGR (dark grey)

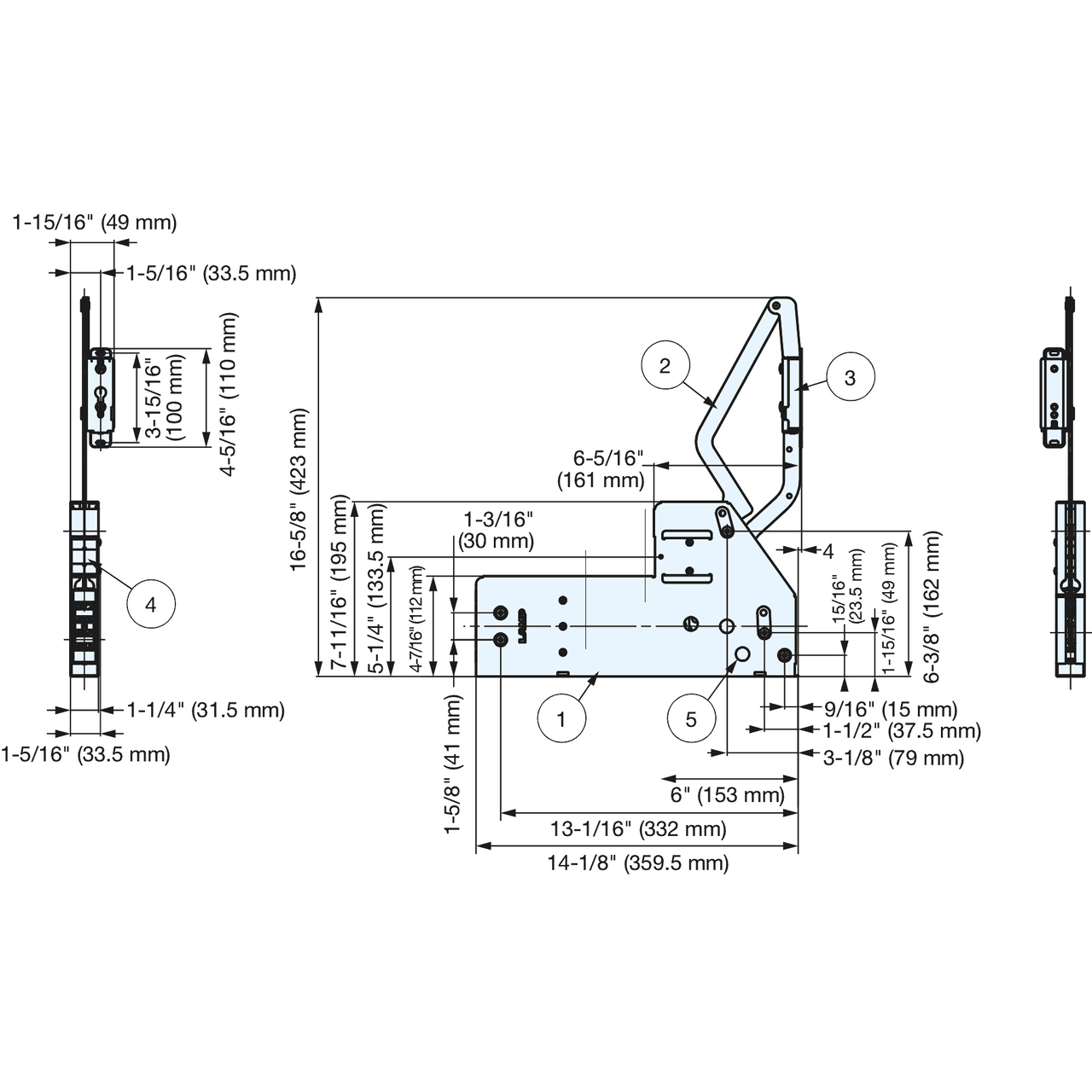

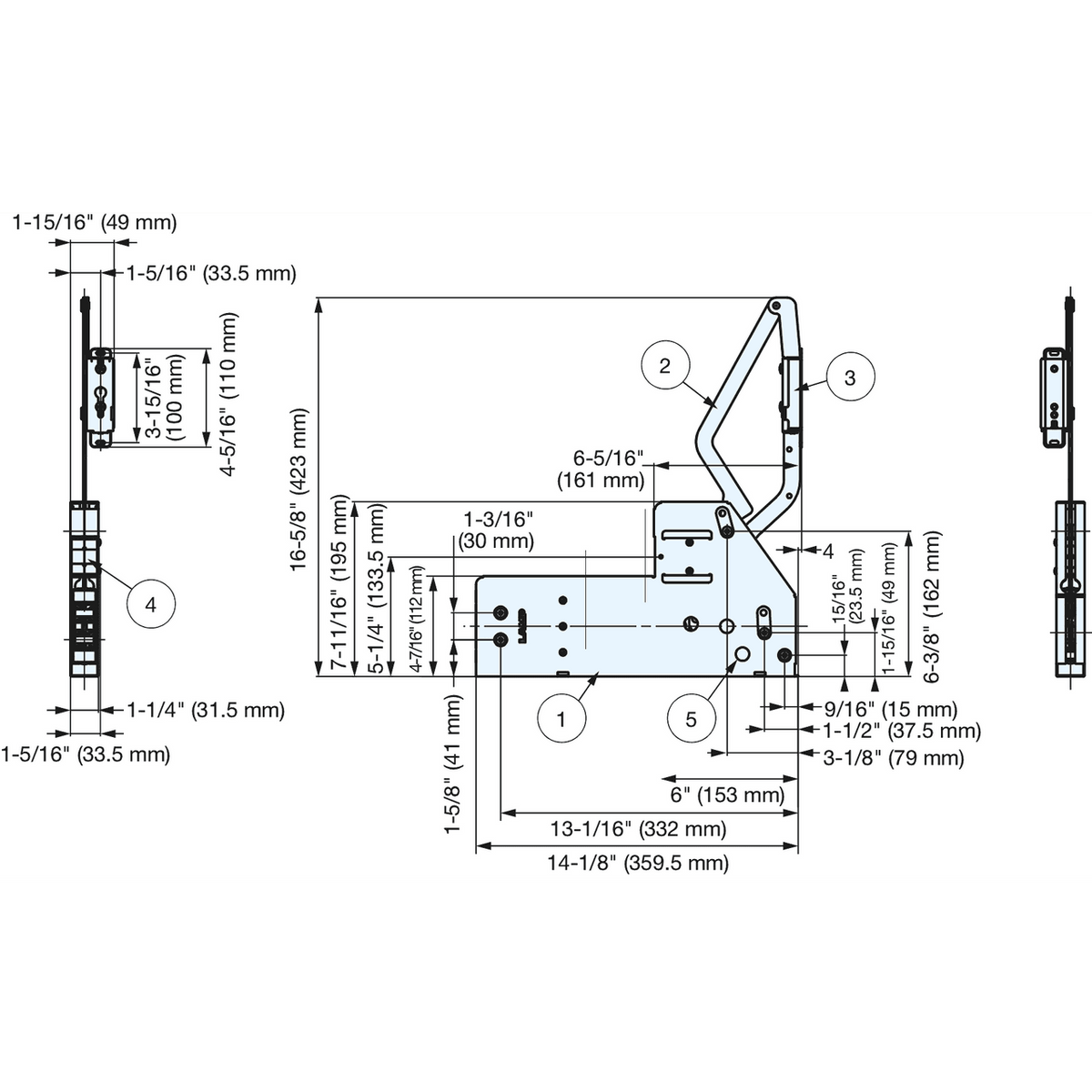

Specifications

Height: 16.653543307086615″
Width: 14.291338582677167″
Depth: 7.7952755905511815″
Country of Origin: China
