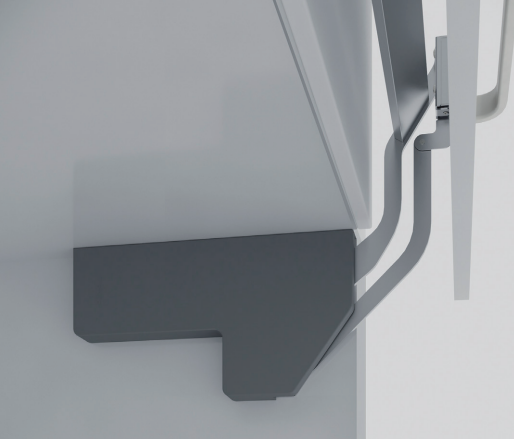

Sugatsune SLUL-11: Vertical Lift-Up Stay Kit - 24.2 lbs. Capacity
Sugatsune SLUL-11: Vertical Lift-Up Stay Kit - 24.2 lbs. Capacity

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Sugatsune SLUL-11: Vertical Lift-Up Stay Kit - 24.2 lbs. Capacity

Sugatsune
|
SKU: suga-SLUL-11
Out of stock
(0)
$691.73
-15% $813.80 $691.73
Usually Ships In 1 to 3 Business Days

Have Questions? Ask an Expert!

888-566-2748 Email Us

Sugatsune SLUL-11: Vertical Lift-Up Stay Kit.
Features

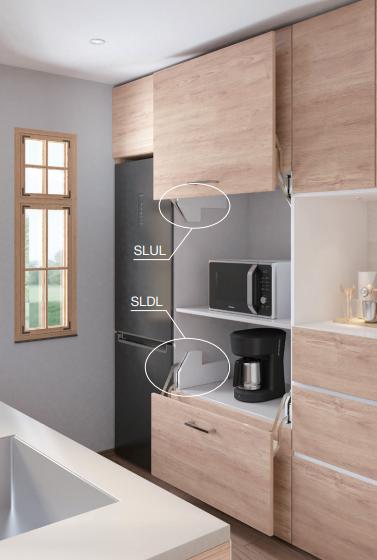

  • For upward opening flap doors
  • Sugatsune Lapcon soft-open and soft-close technology
  • Designed for overlap applications only
  • Door moves forward from 4-3/4" to 6", then raises vertically
  • Lift assist strength can be adjusted to accomodate varying door weights
  • Horizontal, vertical and tilt adjustmants can be done post-installation for a perfect fit


Door Dimensions

  • Maximum Width: 35-7/16"
  • Door Height: 21-5/8" to 35-7/16"
  • Door Weight: 17.6 lbs. to 24.2 lbs.


Body only. Complete kit includes body, covers and connecting bar. Covers and connecting bar sold separately
Cover

  • For white cover, order: suga-SLUL-C-WT
  • For Dark Grey cover, order: suga-SLUL-C-DGR


Connecting Rods

  • For maximum door width of 23-5/8", order: suga-SLUL-B535 (bar length is 21-1/16"
  • For maximum door width of 29-1/2", order: suga-SLUL-B685 (bar length is 27")
  • For maximum door width of 35-7/16", order: suga-SLUL-B835 (bar length is 32-7/8")
  • Bar can be cut to length

Specifications

Height: 7.69″
Width: 14.13″
Depth: 1.44″
