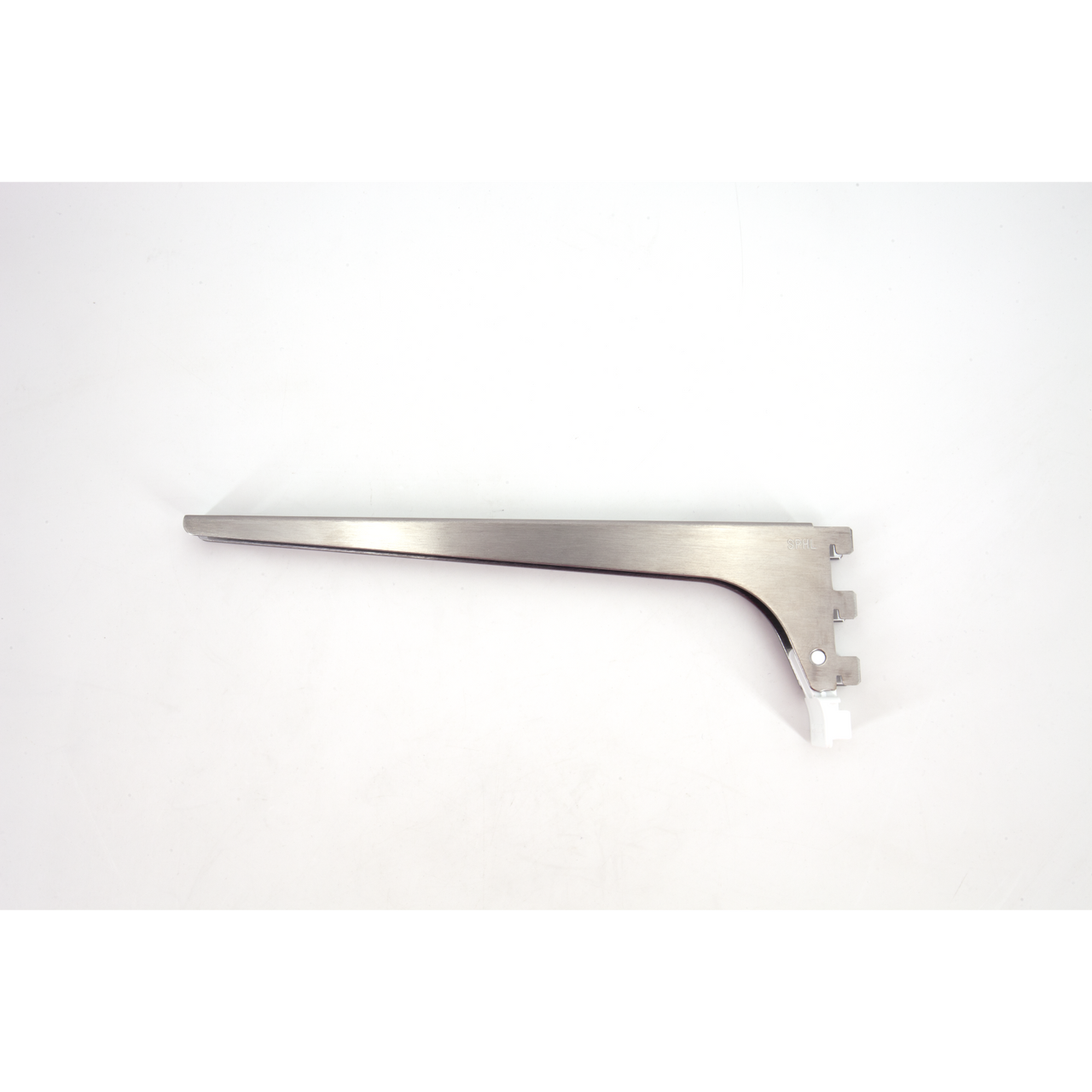

Sugatsune SPHL-FB200: Shelf Support Bracket w/Retainer - Satin Stainless Steel

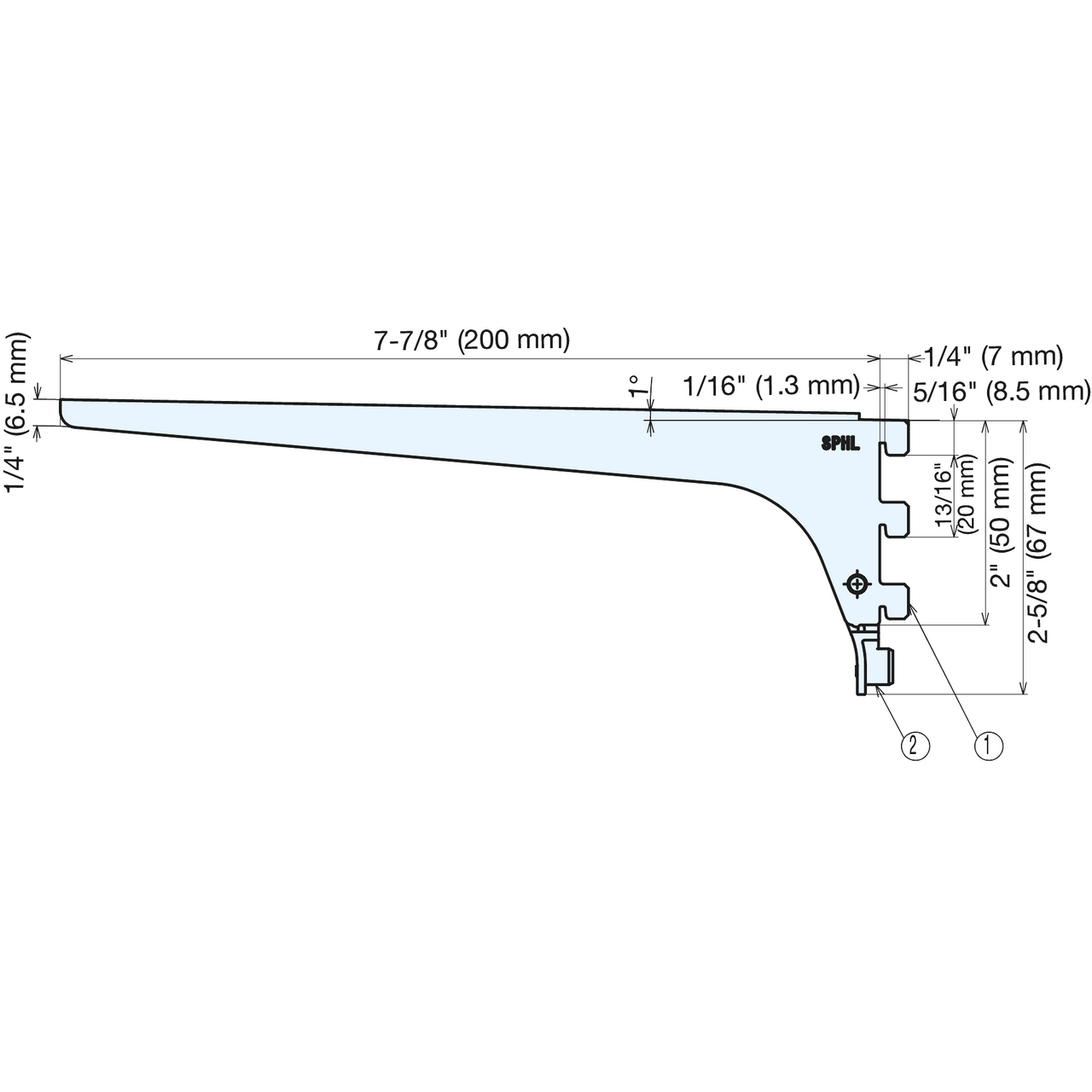

Line Drawing
Sugatsune SPHL-FB200: Shelf Support Bracket w/Retainer - Satin Stainless Steel

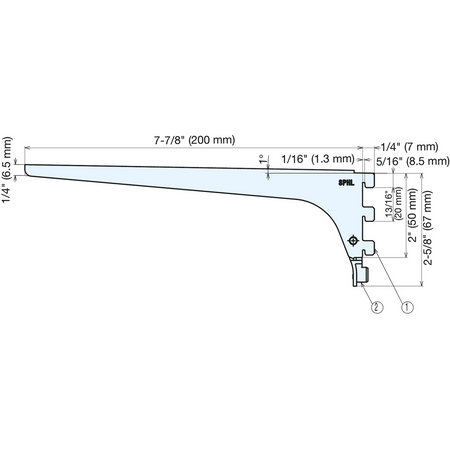

Line Drawing

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

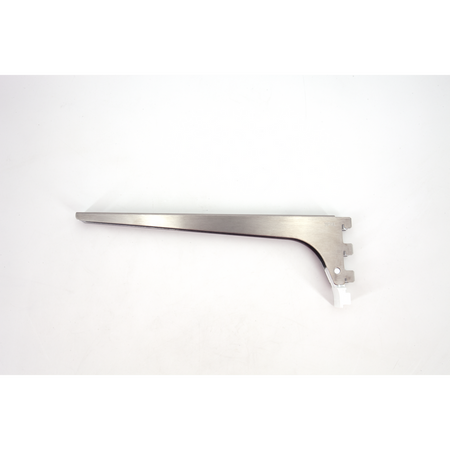

Sugatsune SPHL-FB200: Shelf Support Bracket w/Retainer - Satin Stainless Steel

Sugatsune
|
SKU: suga-SPHL-FB200
Out of stock
(0)
$19.35
-15% $22.77 $19.35
Usually Ships In 1 to 3 Business Days

Have Questions? Ask an Expert!

888-566-2748 Email Us
Sugatsune SPHL-FB200: Shelf Support Bracket w/Retainer in Satin Stainless Steel.
  • For use with the suga-SPHL-1820 shelf standard, sold separately
  • Retainer clips into shelf standard to prevent bracket from coming loose
  • 430 grade stainless steel
  • Maximum shelf length: 35-7/16"Load capacity:
    -For shelf depth of 7-7/8" to 9-13/16": 44 lbs./pair
    -For shelf depth of 9-13/16" to 11-13/16": 31 lbs./pair
  • Load capacity includes weight of shelf
  • Sold individually

Specifications

Height: 2.64″
Width: 0.71″
Depth: 8.15″
