Sugatsune SLUN-5N: Vertical Lift-Up Mechanism for Cabinet Door - 5.8kg

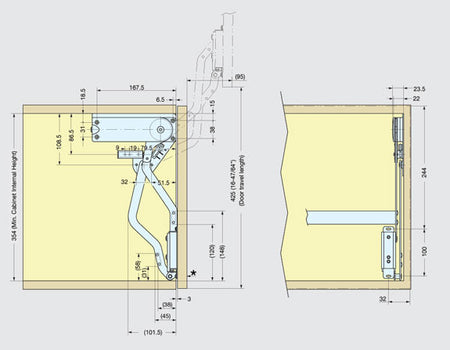

Line Drawing
Sugatsune SLUN-5N: Vertical Lift-Up Mechanism for Cabinet Door - 5.8kg
Line Drawing

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Sugatsune

Sugatsune SLUN-5N: Vertical Lift-Up Mechanism for Cabinet Door - 5.8kg

SKU: suga-SLUN-5N
(0)
$168.49
-15% $198.22 $168.49
In stock
Usually Ships In 1 to 3 Business Days

Ask an expert!

Email 888-566-2748
Sugatsune Hardware SLUN-5N: 5.8kg Vertical Lift-Up Mechanism for Cabinet Door.
  • Lift assist mechanism for vertical swing lift-up cabinet doors
  • Patented Sugatsune LAPCON technology
  • Lift-assist mechanism for extra light-opening
  • Door stays in any desired position
  • Damper equipped for soft and silent closing at the end
  • Sleek and compact design
  • Easy installation
  • Adjustable arm mounting plate Recommended door dimensions:
    -Width: 23-5/8" to 35-7/16"
    -Height: 15-23/64" to 17-23/32"
    -Weight: 10.6 to 12.8 lbs.
  • 32-7/8" Connecting bar included, cut to length as needed
  • Mounting hardware included
Height: 6.99″
Width: 1.85″
Depth: 13.74″
