Sugatsune WP-3L: 28mm Overlay Door Pivot Hinge (left) - Stainless Steel
Sugatsune WP-3L: 28mm Overlay Door Pivot Hinge (left) - Stainless Steel

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Sugatsune WP-3L: 28mm Overlay Door Pivot Hinge (left) - Stainless Steel

Sugatsune
|
SKU: suga-WP-3L
In stock
(0)
$8.25
-15% $9.70 $8.25

IMPORTANT: This item has specific information available that needs to be reviewed before purchasing. Click the button below to see more.

View Complete Product Information Here
Usually Ships In 1 to 3 Business Days

Have Questions? Ask an Expert!

888-566-2748 Email Us

Sugatsune Hardware WP-3L: 28mm Overlay Door Pivot Hinge (left) in Stainless Steel.

  • For overlay Door applications
  • Left hand version
  • 430 grade stainless steel
  • Door Dimensions:
    -Maximum width: 11-13/16"
    -Maximum height: 27-9/16"
    -Maximum thickness: 11/16"
    -Maximum weight: 3.9 lbs./pair
  • Sold individually
  • Requires one left hand and one right hand version per door
  • Corresponding right hand version is suga-WP-3R, sold separately

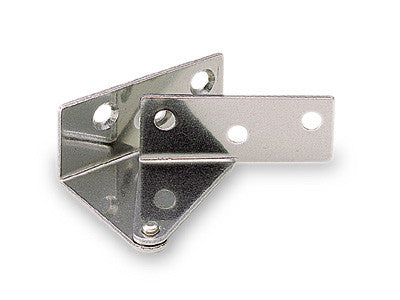

  • Image and line drawing display left hand version
  • Mounting hardware not included
Click here to view the Sugatsune catalog page for more information about this item

Specifications

Height: 1.1″
Width: 2.93″
Depth: 0.71″
