Sugatsune WP-3R: 28mm Overlay Door Pivot Hinge (right) - Stainless Steel
Sugatsune WP-3R: 28mm Overlay Door Pivot Hinge (right) - Stainless Steel

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Sugatsune WP-3R: 28mm Overlay Door Pivot Hinge (right) - Stainless Steel

Sugatsune
|
SKU: suga-WP-3R
In stock
(0)
$7.14
-15% $8.40 $7.14
Usually Ships In 1 to 3 Business Days

Have Questions? Ask an Expert!

888-566-2748 Email Us

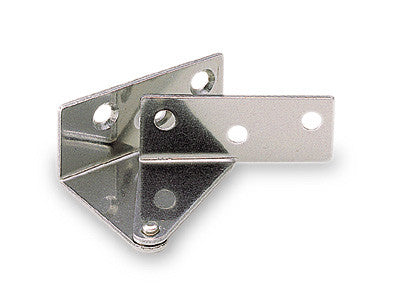

Sugatsune Hardware WP-3R: 28mm Overlay Door Pivot Hinge (right) in Stainless Steel.

  • For overlay Door applications
  • Right hand version
  • 430 grade stainless steel
  • Door Dimensions:
    -Maximum width: 11-13/16"
    -Maximum height: 27-9/16"
    -Maximum thickness: 11/16"
    Maximum weight: 3.9 lbs./pair
  • Sold individually
  • Requires one left hand and one right hand version per door
  • Corresponding left hand version is suga-WP-3L, sold separately
  • Image and line drawing display left hand version
  • Mounting hardware not included

Specifications

Height: 1.1″
Width: 2.93″
Depth: 0.71″
